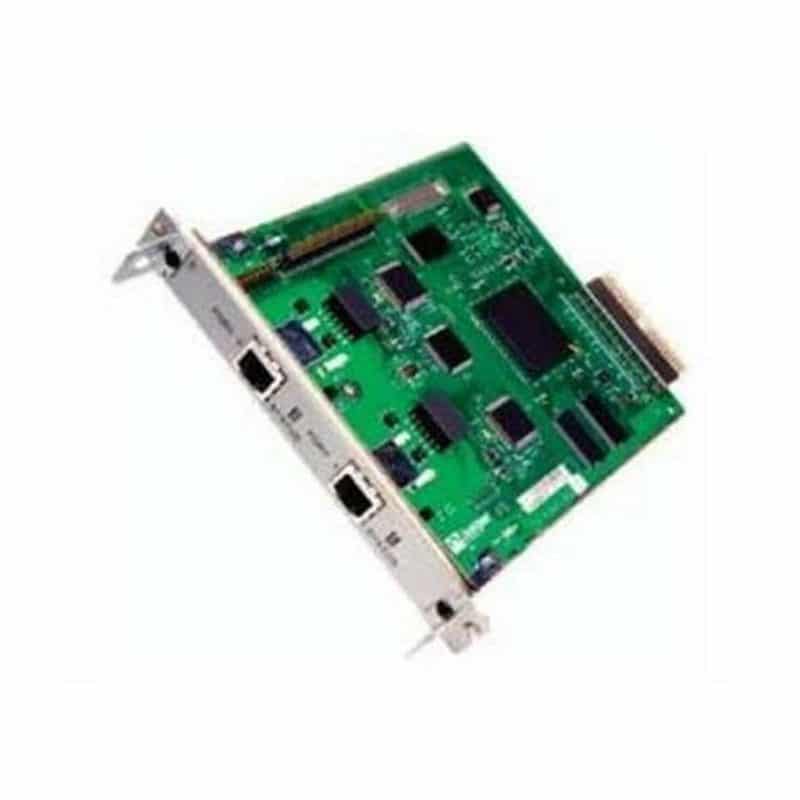

JX-2SHDSL-S Technical Specifications
Juniper Networks G.SHDSL Physical Interface Module (PIM) DSL modem
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | G.SHDSL Physical Interface Module (PIM) |
| Packaged Quantity | :1 |
Modem
| Type | DSL modem |
|---|---|
| Form Factor | Internal |
| Connectivity Technology | Wired |
| Max Transfer Rate | :4.6 MBps |
| Digital Signaling Protocol | SHDSL |
| Protocols & Specifications | ITU G.997.1, ITU G.991.2 (G.shdsl), ITU G.994.1 (G.hs) |
Networking
| Remote Management Protocol | HTTP, Telnet |
|---|---|
| Features | Manageable |
Interface Provided
| Interfaces | :2 x modem – SHDSL |
|---|
Slot Required
| Compatible Slots | :1 x expansion slot |
|---|
Miscellaneous
| Compliant Standards | FCC Part 15 B, IEC 60950, UL 60950 Third Edition, ETSI, EN 61000-4-5, EN 61000-4-6, CSA 22.2 No. 60950, EN 61000-4-2, EN 61000-4-4, EN 61000-4-3, IC CS-03, VCCI Class B ITE, EN 61000-4-11, EN55024, FCC Part 68, EN 60950, EN55022 Class B, BSMI |
|---|
