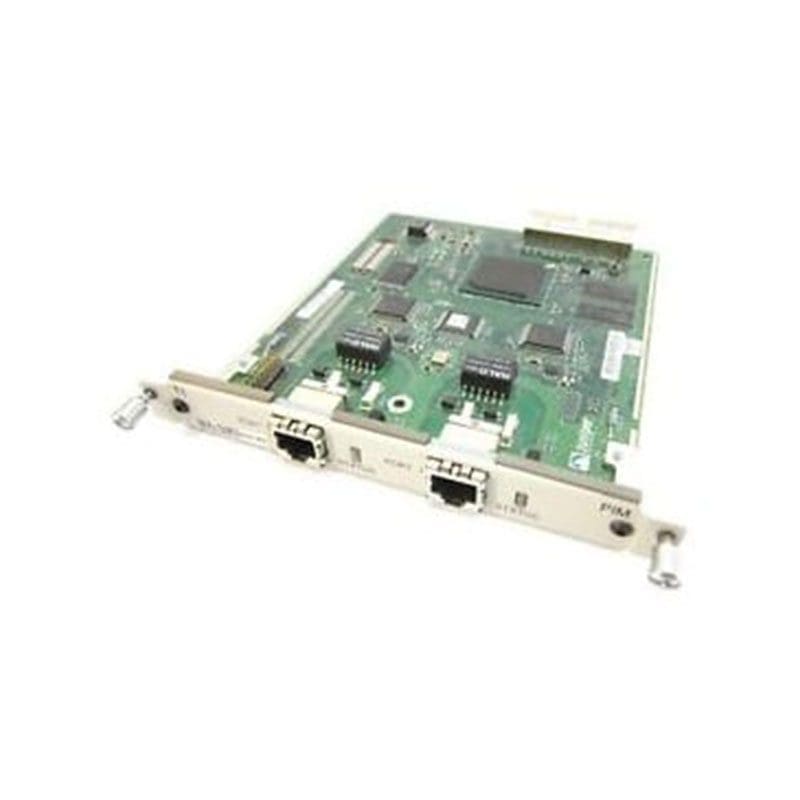

JX-2E1-RJ48-S Juniper Networks Dual-port E1 Physical Interface Modules

Brand:

JX-2E1-RJ48-S Overview

The Juniper Dual-port E1 PIM provides the physical connection to E1 network media type, receiving incoming packets from the network and transmitting outgoing packets to the network. The Juniper Dual-port E1 PIM is equipped with a dedicated network processor that forwards incoming data packets to the Routing Engine, and receives outgoing data packets from the Routing Engine. During this process, the PIM performs E1 framing and line-speed signaling.

$499.00

Shipping calculated at checkout.
or
SKU: JX-2E1-RJ48-S Categories: Brand:

JX-2E1-RJ48-S Technical Specifications

Juniper Networks Dual-port E1 Physical Interface Modules (PIM) – DSU/CSU

Manufacturer Netscreen
Brand Juniper, Juniper Networks
Product Line Juniper Networks
Model Dual-port E1 Physical Interface Modules (PIM)
Packaged Quantity :1

Modem

Type DSU/CSU
Form Factor Internal
Connectivity Technology Wired
Max Transfer Rate :2.048 MBps
Protocols & Specifications HDLC
Features Bit error rate tester (BERT)

Line Properties

Line Rate Fractional E-1/E-1
Line Coding Format HDB3
Framing Format G.704, NO-CRC4

Networking

Compliant Standards ANSI T1.403, ANSI T1.102, ANSI T1.107

Interface Provided

Interfaces :2 x network – E1-FE1 – RJ-48

Slot Required

Compatible Slots :1 x expansion slot
