JSA3800-BSE Technical Specifications

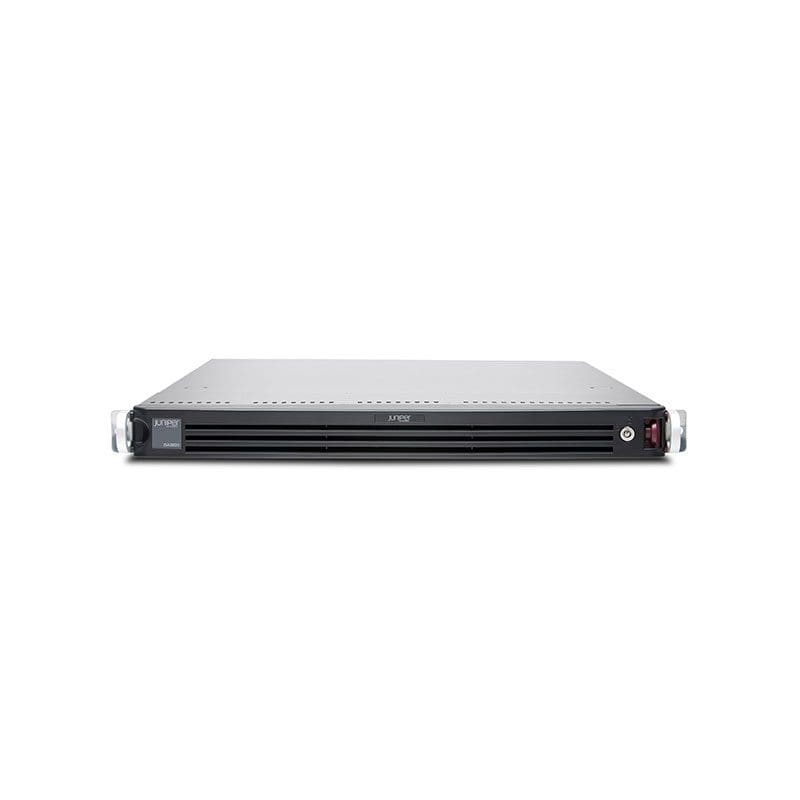

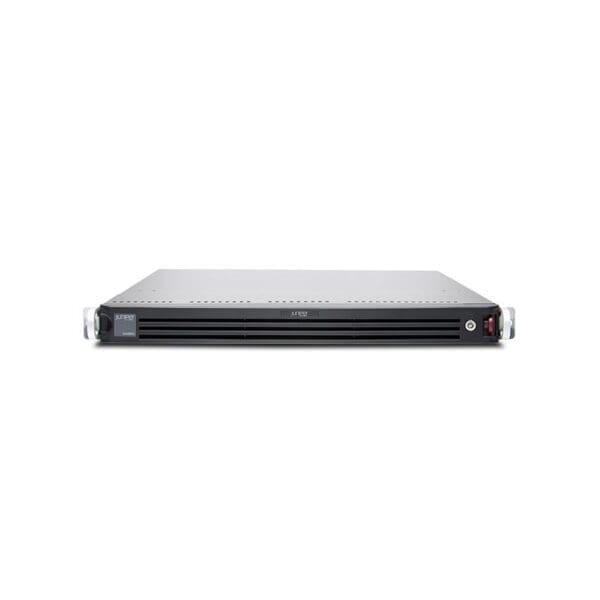

Juniper Networks JSA Series JSA3800 security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks JSA Series |
| Model | JSA3800 |
| Packaged Quantity | :1 |
Processor
| Installed Qty | :1 |
|---|
RAM
| Installed Size | :64 GB |
|---|---|
| Storage | Controller |
| RAID Level | RAID 10 |
Hard Drive
| Type | HDD |
|---|---|
| Form Factor | :2.5″ |
| Form Factor (metric) | :6.4 cm |
| Interface Type | Serial ATA-300 / SAS |
| Installed Qty | :6 |
| Capacity | :900 GB |
Performance
| Performance :Event traffic | 5000 events per second, Flow capacity: 100000 flows per minute |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Data Transfer Rate | :10 GBps |
| Features | IPFIX, Flow control, sFlow, NetFlow, 4 fans, Store and forward, J-Flow |
Interface Provided
| Interfaces | :4 x 1000Base-T – RJ-45, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+ |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Power Provided | :650 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Height (Rack Units) | :1 |
|---|---|
| Encryption Algorithm | SHA |
| Compliant Standards | EN 300386, EN55022 Class A, CISPR 22 Class A, AS/NZS CISPR 22, EN 61000-3-3, RoHS, BSMI CNS 13438 Class A, EN 61000-3-2, EN55024, FCC CFR47 Part 15, EN 60950-1, CISPR 24, UL 60950-1, CSA 22.2 No. 60950-1, ICES-003 Class A, VCCI Class A, KN22 Class A, IEC 60950-1 |
Dimensions & Weight
| Width | :17.2 inch |
|---|---|
| Depth | :22.3 inch |
| Height | :1.7 inch |
| Weight | :28 lbs |
Environmental Parameters
| Min Operating Temperature | :50 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :8 – 90% (non-condensing) |
