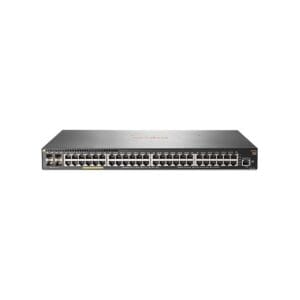

JL256A#ABA HPE Aruba 2930F 48G PoE+ 4SFP+ Switch

Brand:

JL256A#ABA Overview

JL256A#ABA Features :IGMP snooping, VLAN support, Link Aggregation Control Protocol (LACP), DHCP server, IPv6 support, Full duplex capability, LLDP support, sFlow, Internet Control Message Protocol (ICMP), Uni-Directional Link Detection (UDLD), Class of Service (CoS), ARP support, Management Information Base (MIB), STP Root Guard, Flow control, DHCP support, Dynamic VLAN Support (GVRP), CPU protection, Access Control List (ACL) support, SNTP support, Neighbor Discovery Protocol (NDP), Syslog support, OpenFlow support, MAC address lockout, Spanning Tree Protocol (STP) support, Dynamic ARP protection, Type of Service (ToS), ICMP Router Discovery Protocol (IRDP), DHCP protection, BOOTP support, Multiple VLAN Registration Protocol (MVRP), DiffServ support, Quality of Service (QoS), Virtual Extensible LAN (VXLAN), Jumbo Frames support, Multiple Spanning Tree Protocol (MSTP) support, Management Information Base (MIB) II

$5,435.00

Shipping calculated at checkout.
or
SKU: JL256A#ABA Categories: Brand:

JL256A#ABA Technical Specifications

HPE Aruba 2930F 48G PoE+ 4SFP+ Switch 48 Ports Managed Rack Mountable

Manufacturer HPE Aruba
Brand Aruba
Model :2930F 48G PoE+ 4SFP+
Localization English
Packaged Quantity :1

Chassis

  • Installed Devices / Modules Qty :0
  • Supported Devices / Modules Qty :4

Processor

Type Cortex-A9
Installed Qty :1
Manufacturer ARM
Clock Speed :1.016 GHZ

RAM

Technology DDR3 SDRAM
Installed Size :1 GB

Flash Memory

Installed Size :4 GB, 4 GB

Performance

Performance :Latency (1 Gbps) 3.8 µs, Latency (10 Gbps): 1.6 µs, Switching capacity: 176 Gbps, Throughput: 112 Mpps

Capacity

Capacity :IPv4 routing table entries 10000, Jumbo frame size: 9220, IPv6 routing table entries: 5000

Networking

Type Switch
Subcategory Network hubs and switches
Subtype Gigabit Ethernet
Form Factor Rack-mountable
Stackable Stackable
Ports Qty :48
Advanced Switching Layer 3
Routing Protocol RIPng, Static IPv4 routing, CIDR, MLD, IGMPv3, RIP-2, OSPFv2, Static IP routing, IGMP, RIP, Static IPv6 routing, OSPF, OSPFv3, RIP-1, BGP, IGMPv2
MAC Address Table Size :32K entries
Manageable Yes
Remote Management Protocol SNMP, RMON 1, Telnet, SNMP 3, SNMP 2, SNMP 1, SNMP 2c, SSH-2, SSH, CLI, XRMON
Power Over Ethernet (PoE) PoE+
PoE Budget :370 watt
Compliant Standards IEEE 802.1ad, IEEE 802.1w, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.3x, IEEE 802.3az, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1v
