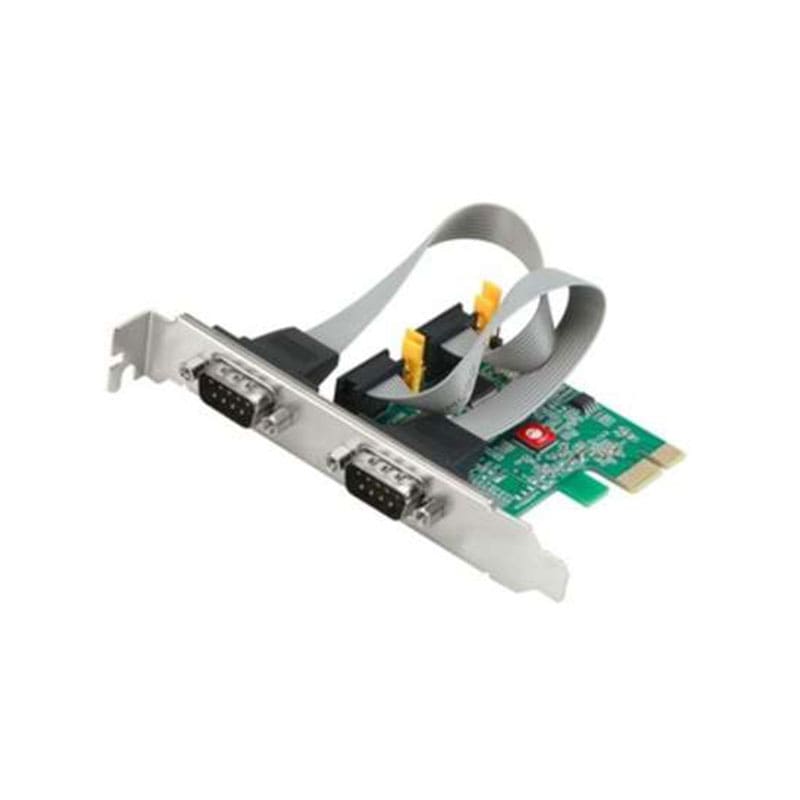

JJ-E20711-S1 SIIG DP Cyber 2S PCIe Card – serial adapter – PCIe 2.0 – RS-232 x 2
JJ-E20711-S1 Overview
Add two 16650 RS232 ports to your PCI Express system Features
Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
Two 16C650 UART serial ports support data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Single-lane (x1) PCI Express End-point Controller with PHY integrated
Full serial modem control with hardware and software flow control
$33.00
Shipping calculated at checkout.
JJ-E20711-S1 Technical Specifications
SIIG DP Cyber 2S PCIe Card – serial adapter – PCIe 2.0 – RS-232 x 2
| Brand | SIIG |
|---|---|
| Product Line | SIIG |
| Model | DP Cyber 2S PCIe Card |
| Manufacturer | Siig |
Processor
| Processor Brand | ASIX |
|---|---|
| Processor Number | AX99100 |
Network & Communication
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocols | RS-232 |
| Data Transfer Rate | 250 Kbps |
| Form Factor | Plug-in card |
| Host Interface | PCI Express 2.0 x1 |
| Low Profile | Low profile |
| PCI Specification Revision | PCIe 2.0 |
| Product Type | Serial adapter |
Connectivity
| Port Quantity | 2 |
|---|---|
| Network & Adapter Ports | RS-232 |
Power
| Power Consumption Operational | 3 watt |
|---|
Software
| Software Type | river |
|---|
Technical Information
Product Information
| Packaged Quantity | 1 |
|---|
Included Items
| Cables | 1 x power splitter cable |
|---|---|
| Included Accessories | 2 x low-profile bracket, 4 x jumpers |
Dimensions & Weight
| Height | 0.7 inch |
|---|---|
| Weight | 1.92 ounce |
| Width | 2.9 inch |
| Depth | 4.7 inch |
Physical Characteristics
| Color | Green |
|---|
