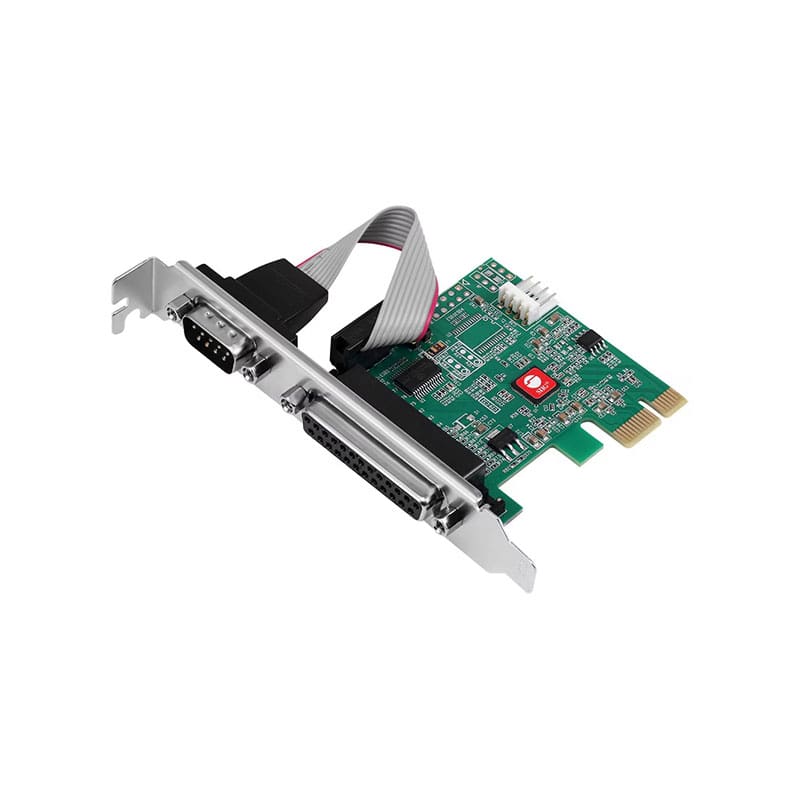

JJ-E20311-S1 SIIG DP Cyber 1S1P Parallel/Serial Adapter PCIe 2.0

JJ-E20311-S1 Overview

Easily adds one serial port and one parallel port through an available PCI Express slot. 16C650 UART serial port with data transfer rate up to 250Kbps. Compliant with PCI Express 2.0 Gen 1. Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode. Single-lane (X1) PCI Express end-point controller with PHY integrated. Full serial modem control. Hardware and software flow control. 5, 6, 7, 8 and 9-bit serial format. Even, odd, none, space and mark parity. On chip 256 byte FIFO buffers in transmit, receive path. Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers.
