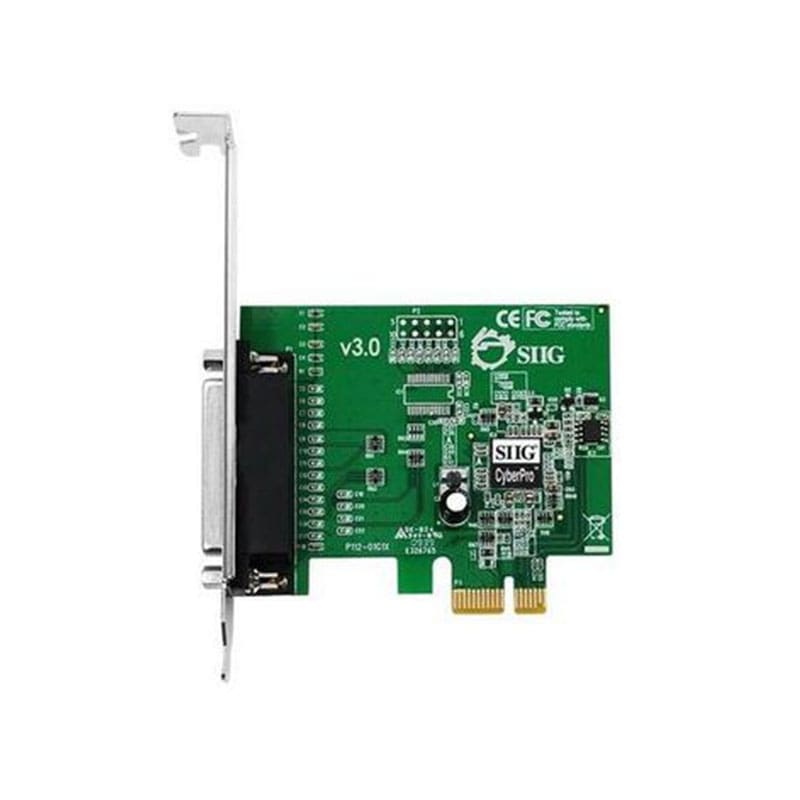

JJ-E01011-S3 SIIG DP Cyber Parallel PCIe Parallel adapter
JJ-E01011-S3 Overview
SIIG’s DP CyberParallel PCIe is designed to add one high-speed, 25-pin parallel port to your PCI Express-enabled desktop computer. The DP CyberParallel PCIe adapter card supports EPP/ECP and SPP parallel port modes and with the 4-layer PCB design, signal noise and loss are greatly reduced, delivering more reliable high-speed data transfers. The dual-profile PCB design along with the included spare low profile bracket allows it to be installed in either standard height and low profile desktop systems.
$25.00
Shipping calculated at checkout.
JJ-E01011-S3 Technical Specifications
SIIG DP Cyber Parallel PCIe Parallel adapter
| Brand | SIIG |
|---|---|
| Product Line | SIIG |
| Model | DP CyberParallel PCIe, JJ-E01011-S3 |
| Manufacturer | Siig |
Network & Communication
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocols | Parallel |
| Form Factor | Plug-in card |
| Host Interface | PCI Express x1 |
| Low Profile | Low profile |
| PCI Specification Revision | PCIe 1.1 |
| Product Type | Parallel adapter |
Expansion Slots
| Compatible Slots Required | 1 x PCI Express x1 |
|---|
Connectivity
| Interface Provided | 1 x serial – IEEE 1284 (EPP/ECP) – 25 pin D-Sub (DB-25) |
|---|
Software
| Software Type | Drivers & Utilities |
|---|
Technical Information
| Operating System Required | Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2003, Microsoft Windows Server 2008 |
|---|
Product Information
| Packaged Quantity | 1 |
|---|
Included Items
| Included Accessories | Low-profile bracket |
|---|
Certifications & Listings
| Compliant Standards | FCC Class B certified, RoHS |
|---|
