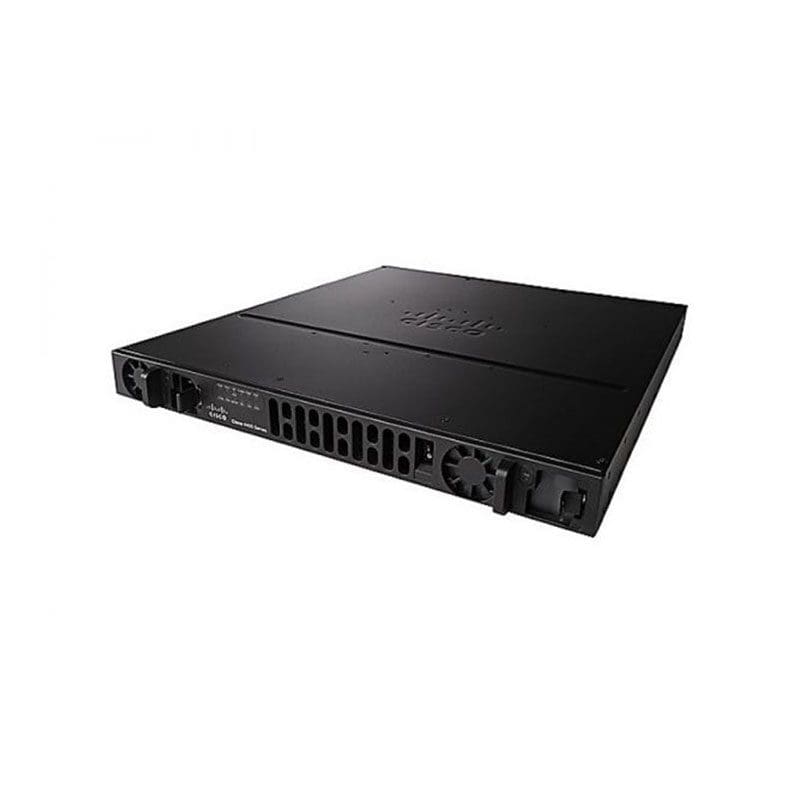

ISR4431-AXV/K9 Technical Specifications
Cisco ISR 4431 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25
| Product Number | ISR4431-AXV/K9 |
|---|---|
| Product Line | Cisco ISR |
| Product Model | ISR4431 |
| Aggregate Throughput | 500Mbps to 1Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB | console port -type B mini (up to 115.2 kbps): 1 |
| Serial console port – RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port – RJ45 (up to 115.2 kbps) | 1 |
| AC input frequency | 47 to 63 Hz |
| Typical power (no modules) (watts) | 65 |
