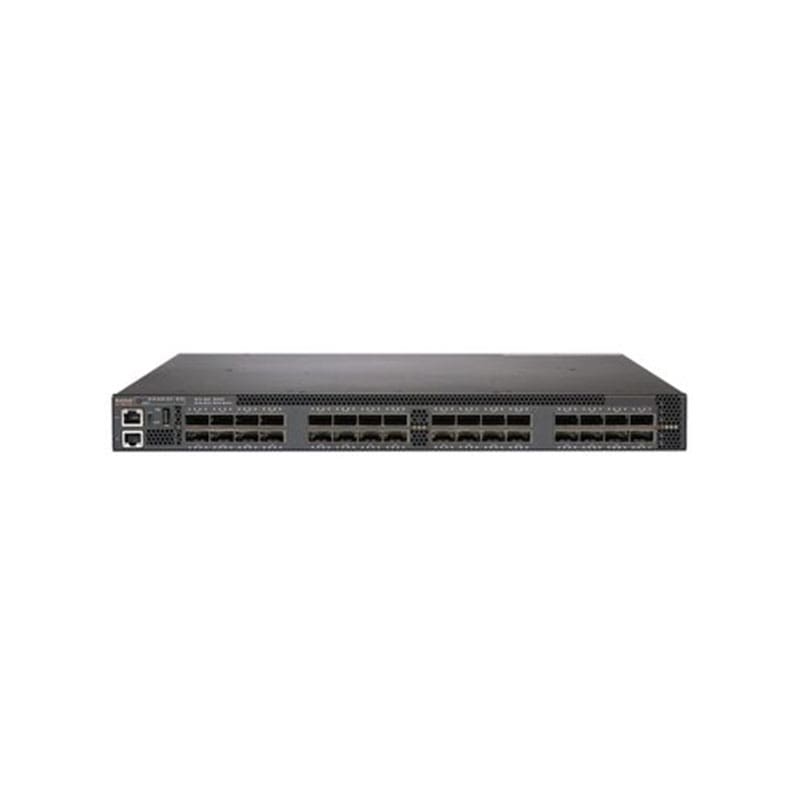

ICX7850-32Q-E2 Ruckus ICX 7850-32Q Switch 2 ports Managed Rack-mountable
ICX7850-32Q-E2 Overview
The ICX 7850-32Q aggregation/core switch comes standard with 32 40/100 GbE ports and up to 8 of these ports can be used for stacking. The QSFP28 ports are capable of native 40 GbE or 100 GbE Ethernet, or may be broken out to 4×10 Gbps or 4×25 Gbps links to give up to 128 10/25GbE ports for server aggregation in a Data Center, or switch aggregation in the campus.
$25,279.00
Shipping calculated at checkout.
ICX7850-32Q-E2 Technical Specifications
Ruckus ICX 7850-32Q Switch 2 ports Managed Rack-mountable
| Device Type | Switch – 32 ports – L3 – managed – stackable |
|---|---|
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Encryption Algorithm | AES |
| RAM | 4 GB |
| Flash Memory | 32 GB |
Expansion / Connectivity
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous
| Mtbf | 467,508 hours |
|---|
Dimensions & Weight
| Width | 17.3 in |
|---|---|
| Depth | 17.5 in |
| Height | 1.7 in |
| Weight | 20.06 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | -40 °F |
