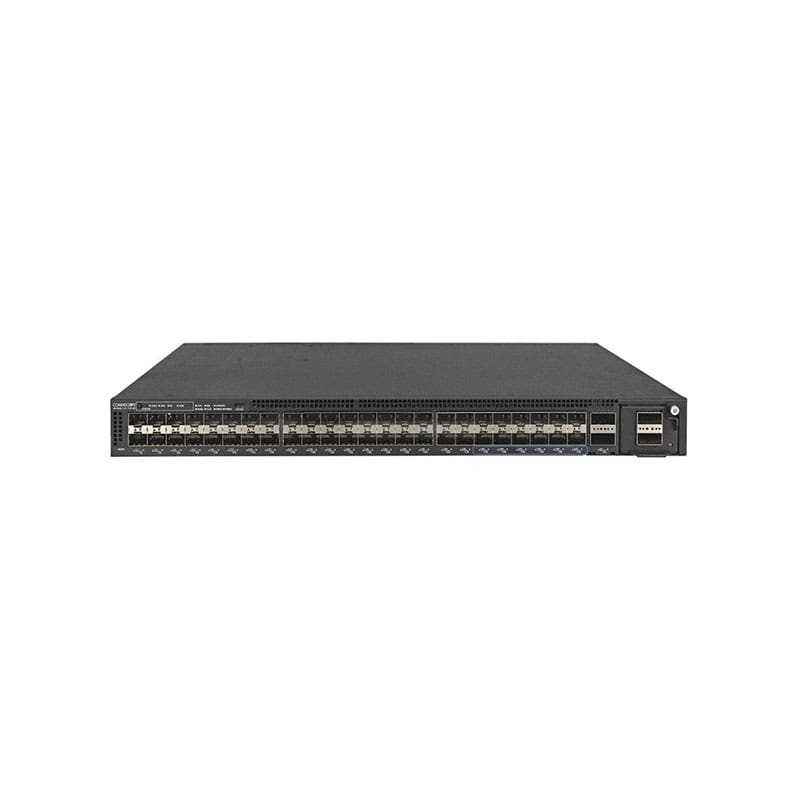

ICX7550-48F-E2-R3 Ruckus ICX 7550-48F Switch 48 ports Rack-Mountable
ICX7550-48F-E2-R3 Overview
The CommScope Ruckus ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond. It offers incredible stacking density and combines chassis-level performance with “pay as you grow” scalability of a stackable solution.
$12,199.00
Shipping calculated at checkout.
ICX7550-48F-E2-R3 Technical Specifications
Ruckus ICX 7550-48F Switch 48 ports Managed Rack-Mountable
| Brand | Ruckus |
|---|---|
| Product Line | Ruckus ICX |
| Model | 7550-48F |
| Manufacturer | Ruckus Wireless |
Memory
| Flash Memory Installed | 4 GB |
|---|---|
| RAM Installed | 4 GB |
Network & Communication
| Advanced Switching | Layer 3 |
|---|---|
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 12288 bytes |
| Manageable | Yes |
| Max Units In A Stack | 12 |
| Ports | 48 |
| Product Type | Switch |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| QSFP Slots | 40/100 Gigabit QSFP+ |
| Port Quantity | 36 |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit SFP+ |
Power
| Frequency | 50/60 hertz |
|---|---|
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | 166.8 watt |
| Power Provided | 400 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Redundant Power Supply Supported | 1+1 |
