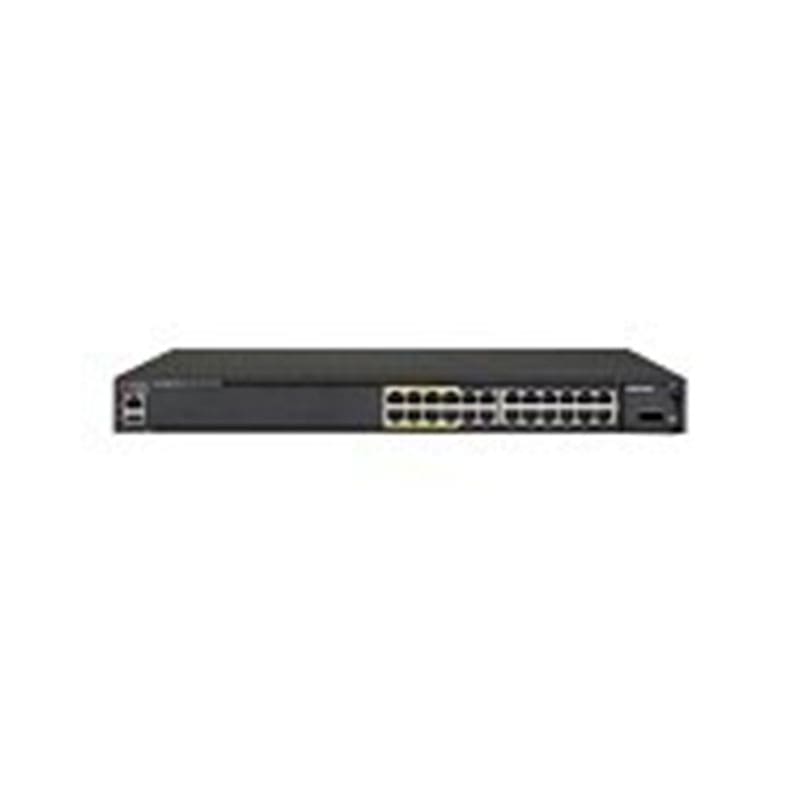

ICX7450-24P-E-RMT3 Ruckus ICX 7450-24P 1U RM L3 Managed Switch
ICX7450-24P-E-RMT3 Overview
The Ruckus ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network. The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable uplink modules.
$6,439.00
Shipping calculated at checkout.
ICX7450-24P-E-RMT3 Technical Specifications
Ruckus ICX 7450-24P 1U RM L3 Managed Switch 24xGbE PoE+ 30W 4x10Gbe LAN SFP+ 2x40GbE LAN QSFP+ 1x1000W
General
| Chassis Form Factor | 1U Rackmount |
|---|---|
| Color | Black |
General Information
| Switching capacity | 288Gbps |
|---|---|
| Forwarding performance | 214Mpps |
| Aggregate stacking bandwidth | 96 Gbps |
| VPN throughput (IPSec) | 10Gbps |
| Virtual interfaces (VLANs) | 4096 |
| Spanning Tree Protocol instances | 254 |
| IPv4 routes | 15168 |
| IPv6 routes | 5120 |
| QoS hardware queues per port | 8 |
| IPSec tunnels | 20 |
| Hardware multicast groups | 8192 |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 12 |
| Physical Dimensions |
|
Expansion Slots
Expansion Slots
- 1000Base-T RJ-45 PoE+ 30W
- 10GbE LAN SFP+ uplink/stacking
- 40GbE LAN QSFP+ uplink/stacking
| USB | Type-A |
|---|---|
| 1000Base-T RJ-45 management | |
