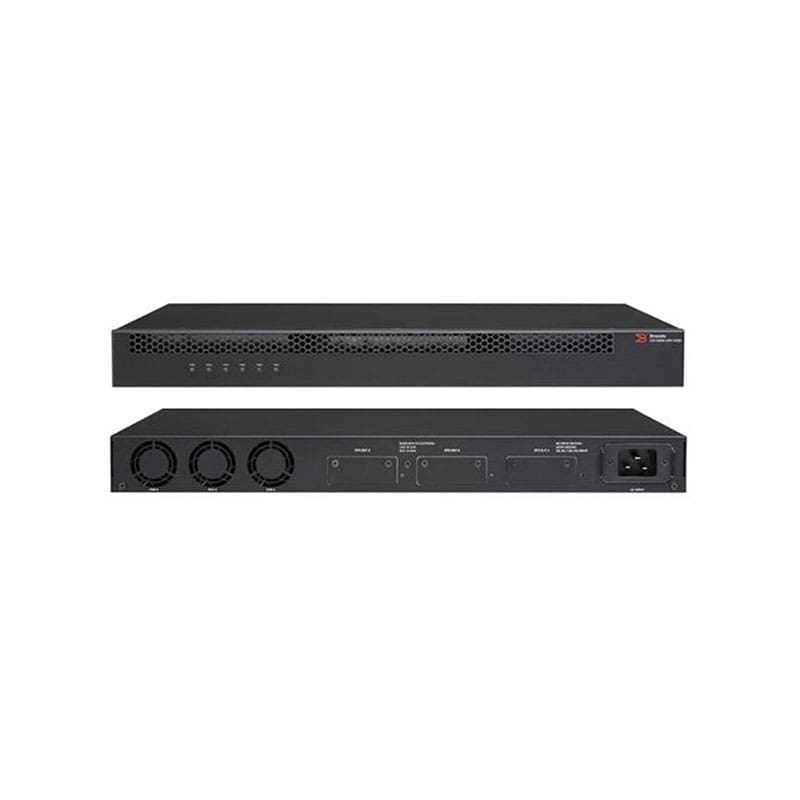

ICX6400-EPS1500 Technical Specifications
Ruckus Wireless LLC Icx 6430/6450 1500W Extended Power Supply
| Manufacturer | Ruckus Wireless |
|---|---|
| Brand Name | Brocade |
| Product Type | Redundant Power Supply |
| Number of +12V Rails | 1 |
| Form Factor | External |
| Product Model | ICX6400-EPS1500 |
Input Voltage
- 110 V AC
- 220 V AC
| Output Power | 1500 W |
|---|
Output Voltage
- 12 V
- 54 V
Output Voltage Detail
- 12 V @ 5.6 A
- 54 V @ 6.85 A
| Height | 1.7″ |
|---|---|
| Width | 17.4″ |
| Depth | 14.6″ |
Output Current
- 5.60 A
- 6.85 A
| Mtbf | 789923 Hour |
|---|---|
| Plug / Connector | Power |
| Hot Swappable Power Supply | Yes |
| Input Voltage Type | AC |
| Input Voltage Range | 100 V AC – 240 V AC |
| Input Current | 16 A @ 110V |
