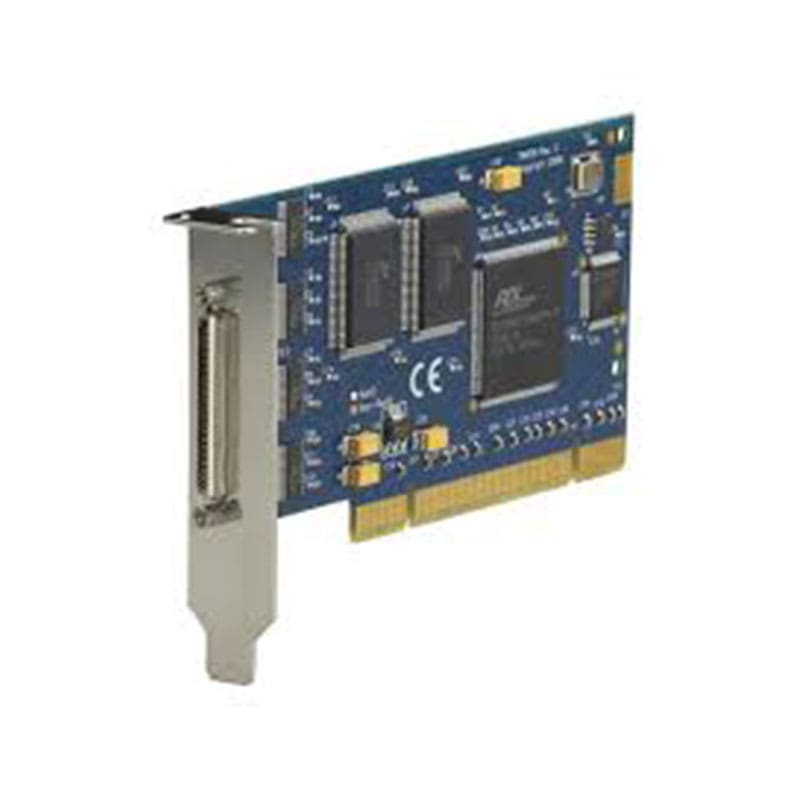

IC190C-R2 Black Box Serial Host Adapter Serial adapter PCI 8 ports
IC190C-R2 Overview
Serial Host Adapters with ISP have a built-in Interrupt Status Port (ISP) and enhanced software drivers, so multiple ports and multiple cards can share a single IRQ. They provide up to 16 PCI bus links for communication servers, point-of-sale (POS) systems, and other RS-232 devices. The IC190C-R2 card features a low profile. Universal bus compatible.
$442.00
Shipping calculated at checkout.
IC190C-R2 Technical Specifications
Black Box Serial Host Adapter Serial adapter PCI 8 ports
| Brand | Black Box |
|---|---|
| Product Line | Black Box Serial Host Adapter |
| Manufacturer | Black Box |
Network & Communication
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocols | RS-232 |
| Data Transfer Rate | 460.8 Kbps |
| Form Factor | Plug-in card |
| Host Interface | PCI |
| Product Type | Serial adapter |
Expansion Slots
| Compatible Slots Required | 1 x PCI – half-length |
|---|
Connectivity
| Interface Provided | 1 x RS-232 – 78 pin D-SUB (rear), 8 x RS-232 – 25 pin D-Sub (DB-25) (external) |
|---|
Software
| Software Type | Drivers & Utilities |
|---|
Technical Information
| Max Operating Temperature | 50 degree Celsius |
|---|---|
| Min Operating Temperature | degree Celsius |
| Operating Humidity | 10 – 90% |
Product Information
| Packaged Quantity | 1 |
|---|
Included Items
| Cables | 1 x serial cable (external) – 0.9 m |
|---|
