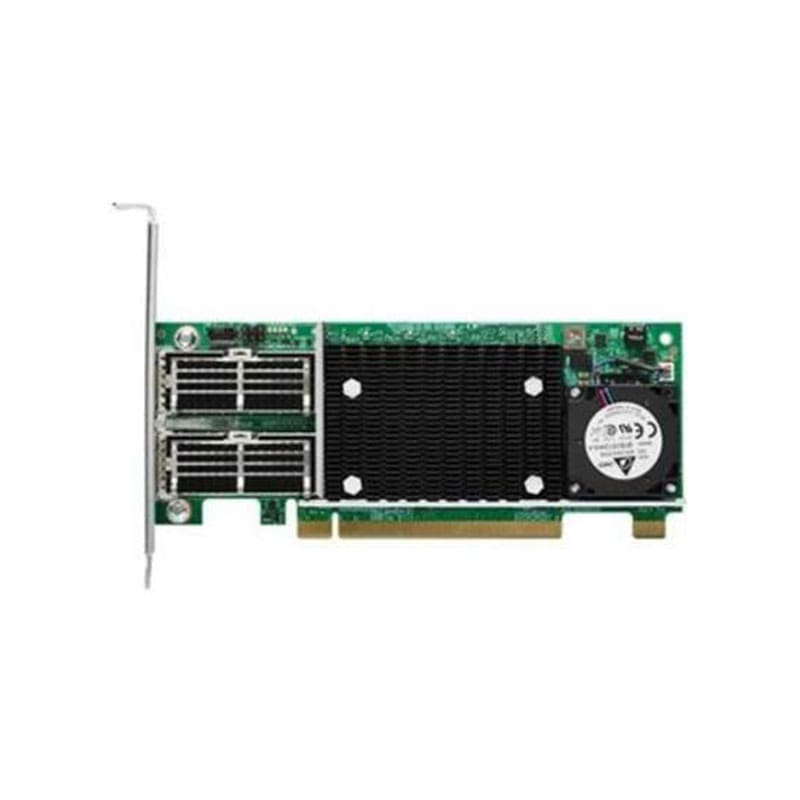

HX-PCIE-C40Q-03 Cisco Virtual Interface Card 1385 Network Adapter
HX-PCIE-C40Q-03 Overview
The Cisco UCS 1385 Virtual Interface Card provides a policy-based, stateless, agile server infrastructure for your data center. This dual-port enhanced QSFP half-height PCI Express (PCIe) card is designed exclusively for Cisco UCS C-Series rack servers. The card supports 40 GbE and Fiber Channel over Ethernet (FCoE). It incorporates Cisco’s converged network adapter (CNA) technology and offers a comprehensive feature set, providing investment protection for future feature software releases. The card can present more than 256 PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs).
$1,153.00
Shipping calculated at checkout.
HX-PCIE-C40Q-03 Technical Specifications
Cisco Virtual Interface Card 1385 Network Adapter
| Brand | Cisco |
|---|---|
| Manufacture Part Number | HX-PCIE-C40Q-03 |
| Product Line | Cisco |
| Model | Virtual Interface Card 1385 |
| Manufacturer | Cisco Unified Computing |
Network & Communication
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocols | 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Fibre Channel | FCP |
| Form Factor | Plug-in module |
| Host Interface | PCI Express 3.0 x16 |
| Product Type | Network adapter |
Connectivity
| Interface Provided | 2 x 40Gb Ethernet – QSFP+ |
|---|---|
| Port Quantity | 2 |
| Network & Adapter Ports | 40 Gigabit QSFP+ |
Product Information
| Capacity | Jumbo frame size: 9000 |
|---|---|
| Performance | Throughput: 80 Gbps |
Dimensions & Weight
| Width | 2.5 inch |
|---|---|
| Depth | 6.6 inch |
