HWIC-8A/S-232= Technical Specifications

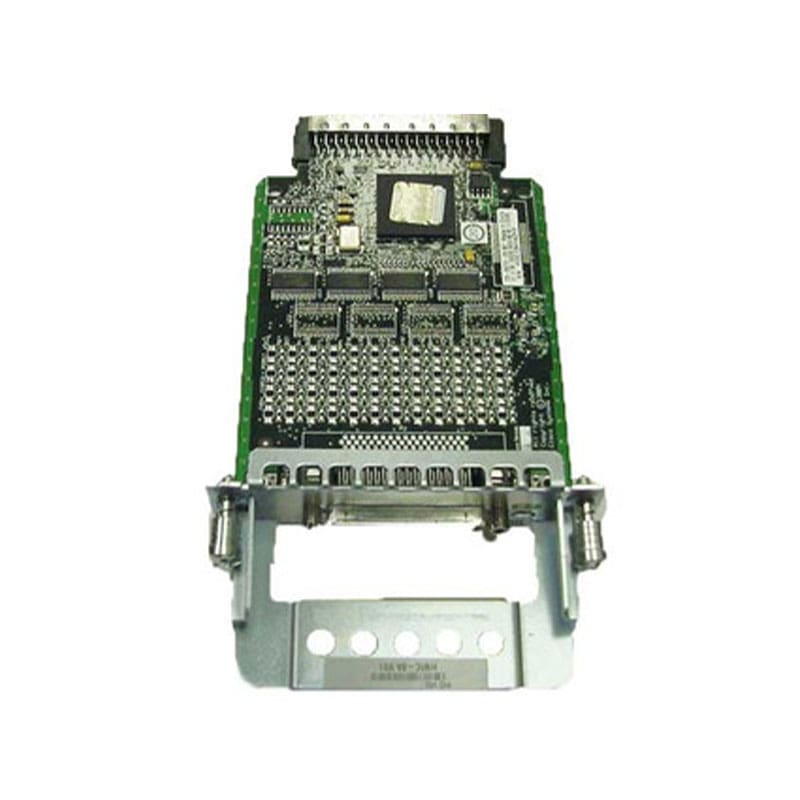

Cisco Systems 8-Port RS-232 Asynchronous/Synchronous Serial HWIC
| Manufacturer | Cisco |
|---|---|
| Brand | Cisco |
| Product Type | WAN Interface Card (WIC)-Expansion Module |
Technical Information
| Application/Usage | Wide Area Network |
|---|---|
| Form Factor | Plug-in module |
| Interface (Bus) Type | HWIC |
| Number of Ports Quantity | 8 Ports |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 256 KBPS |
| Network / Transport Protocol | TCP/IP |
Interfaces / Ports
| Interfaces/Ports Details | 2 x Connector |
|---|
Expansion / Connectivity
| Interfaces | 8 x Serial – asynchronous/synchronous |
|---|---|
| Compatible Slots | 1 x HWIC |
Management & Protocols
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 256 Kbps |
| Network / Transport Protocol | TCP/IP |
Dimensions & Weight
| Height | 0.8 Inch |
|---|---|
| Width | 3.1 Inch |
| Depth | 5.6 Inch |
| Weight | (Approximate) 1.5 LLBS |
