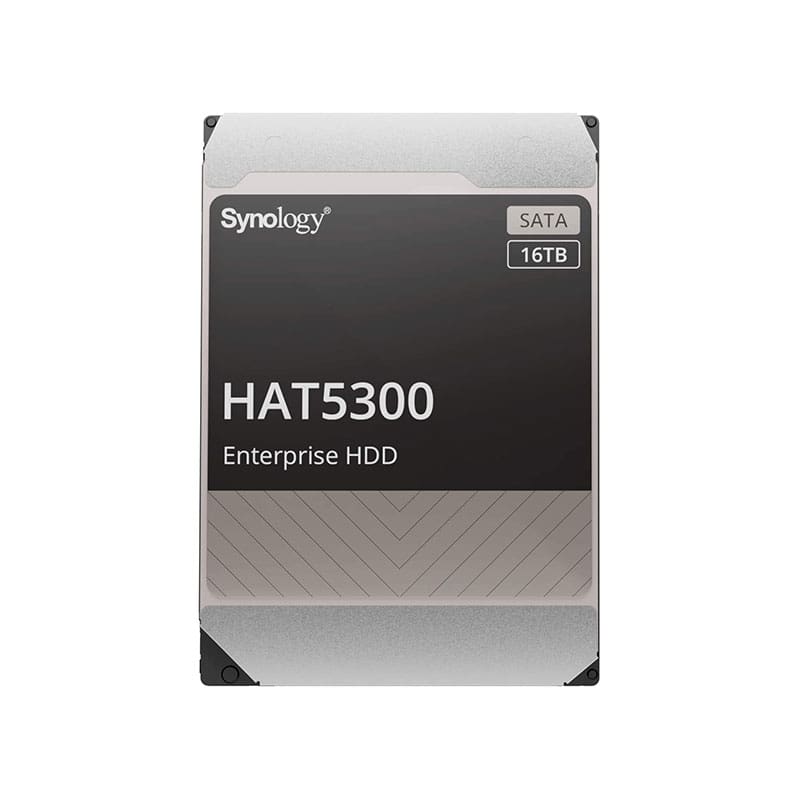

HAT5300-16T Synology HAT5300 Hard Drive 16TB SATA 6Gb/s
HAT5300-16T Overview
Synology HAT5300 Hard Drive 16TB SATA 6Gb/s
$1,019.00
Shipping calculated at checkout.
HAT5300-16T Technical Specifications
Synology HAT5300 Hard Drive 16TB SATA 6Gb/s
| Brand | Synology |
|---|---|
| Product Line | Synology |
| Model | HAT5300 |
| Manufacturer | Synology |
Storage
| Buffer Size | 512 megabyte |
|---|---|
| Bytes per Sector | 512 |
| Data Transfer Rate | (Hard Drive) 600 MBps |
| Form Factor (Short) | 3.5″ |
| Form Factor (Short) (metric) | 8.9 cm |
| Hard Drive Capacity | 16 TB |
| Hard Drive | Features |
| Workload | up to 550 TB per year |
| Hard Drive | Type |
| Internal | hard drive |
| HD Interface |
|
| Max Internal Data Transfer Rate | 262 MBps |
| Spindle Speed | (rpm) |
| 7200 revolutions per minute | |
| Storage | Interface |
Serial ATA-600
| 24×7 Operation | Yes |
|---|
Connectivity
| Interface Provided | 1 x SATA 6 Gb/s |
|---|
Power
| Power Consumption | 4 Watt (idle), 7.63 Watt (random read/write) |
|---|
Technical Information
| Compatible Bay | 3.5″ |
|---|---|
| Hard Drive Form Factor | 3.5″ |
| Hard Drive Form Factor | (metric) 8.9 cm |
| Max Operating Temperature | 140 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 41 degree Fahrenheit |
Min Storage Temperature -40 degree Fahrenheit
| Mtbf | 2,500,000 Hours |
|---|---|
| Operating Humidity | 5 – 90% (non-condensing) |
| Shock | Acceleration (Non-operating) 250 gram |
| Shock | Acceleration (Operating) 70 gram |
| Shock | Duration (Non-operating) 2 ms |
| Shock | Duration (Operating) 2 ms |
| Vibration | Acceleration (Non-operating) 3 gram |
| Vibration | Acceleration (Operating) 0.75 gram |
| Vibration | Frequency Range (Non-operating) 5-500 Hz |
| Vibration | Frequency Range (Operating) 5-300 Hz |
Product Information
| Packaged Quantity | 1 |
|---|---|
| Product Type | Hard Drive |
Dimensions & Weight
| Height | 1 inch |
|---|---|
| Weight | 25.39 ounce |
| Width | 4 inch |
| Depth | 5.8 inch |
