GRWIC-D-ES-2S-8PC= Technical Specifications

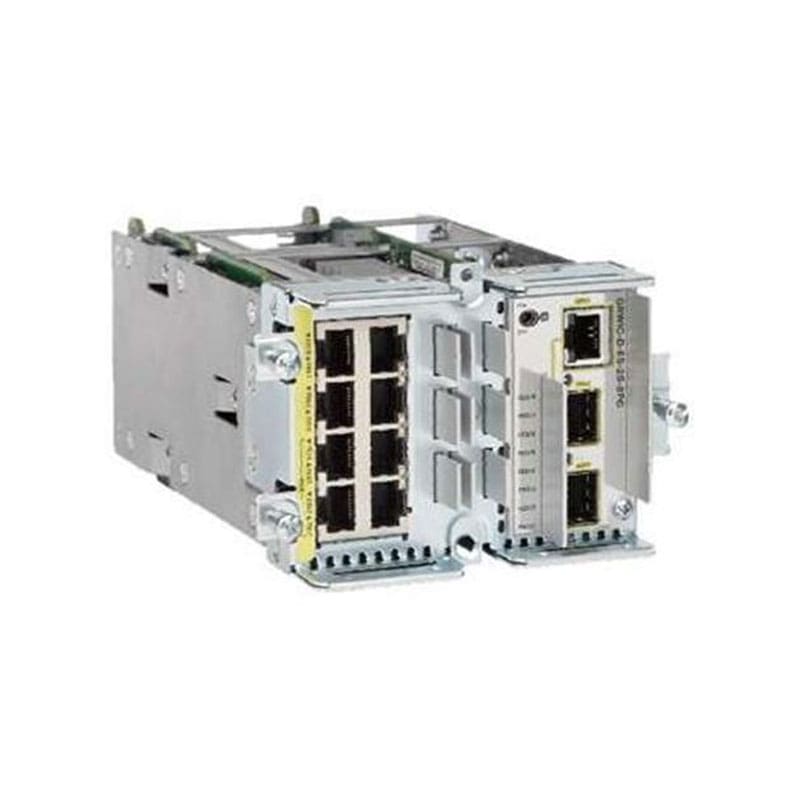

Cisco Ethernet Switch Module for the Cisco 2010 Connected Grid Router switch 8 ports managed plug-in module
| Brand | Cisco |
|---|---|
| Product Line | Cisco Ethernet Switch Module |
| Model | for the Cisco 2010 Connected Grid Router |
| Manufacturer | Cisco Systems |
Memory
| Memory Technology | DDR2 SDRAM |
|---|---|
| RAM Installed | 256 megabyte |
Network & Communication
| Form Factor (Hubs & Switches) | Plug-in module |
|---|---|
| Manageable | Yes |
| Ports | 8 |
| Power Over Ethernet (PoE) | PoE |
| Product Type | Switch |
| Subcategory | Network hubs and switches |
Connectivity
| Interface Provided | 1 x 1000Base-T RJ-45, 2 x SFP (mini-GBIC), 4 x 100Base-TX RJ-45, 4 x 100Base-TX RJ-45 PoE |
|---|---|
| Port Quantity | 8 |
| Port Type | 10/100 |
Technical Information
| Encryption | MODBUS |
|---|---|
| Max Storage Temperature | 85 degree Celsius |
| Min Storage Temperature | -40 degree Celsius |
Product Information
| Packaged Quantity | 1 |
|---|
Dimensions & Weight
| Height | 7.6 centimetre |
|---|---|
| Weight | 0.95 kilogram |
| Width | 10.2 centimetre |
| Depth | 19.8 centimetre |
