GLC-BX-D-I= Technical Specifications

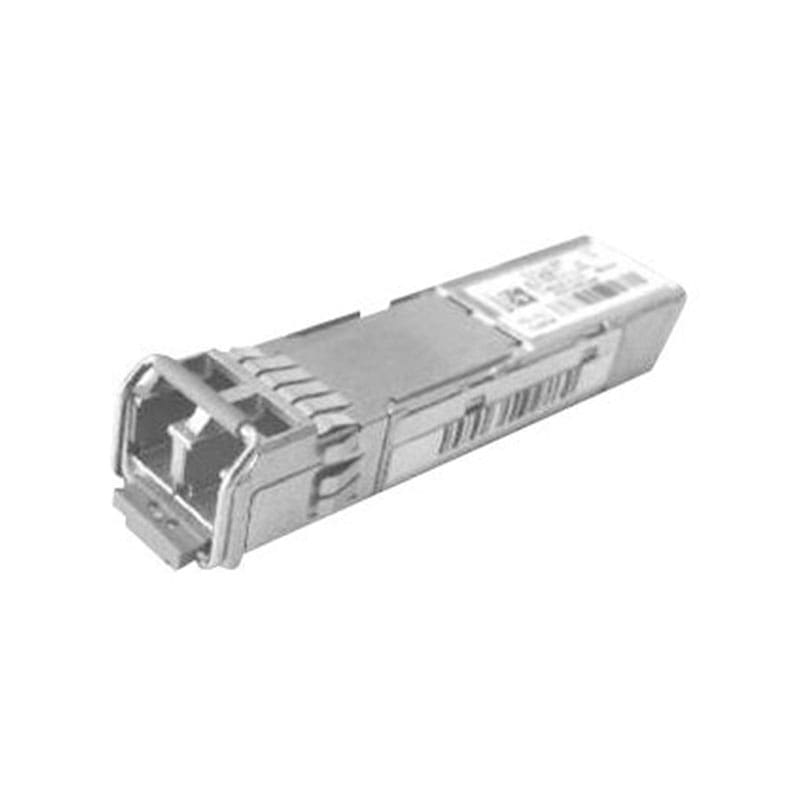

Cisco 1000Base-BX10-D Downstream Bidirectional Single Fiber Transceiver Module
| Brand | Cisco |
|---|---|
| Product Line | Cisco |
| Edition | Industrial temperature |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Network & Communication
| Cable Type | Ethernet 1000Base-BX-D |
|---|---|
| Compliant Standards | IEEE 802.3ah, IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocols | Gigabit Ethernet |
| Features | Digital Optical Monitoring (DOM) support |
| Form Factor | Plug-in module |
| Max Transfer Distance | 6.2 miles |
| Optical Wave Length | 1310 (RX) / 1490 (TX) nm |
| Product Type | SFP (mini-GBIC) transceiver module |
Connectivity
| Interface Provided | 1 x Ethernet 1000Base-BX-D – LC/PC single-mode female x 2 |
|---|
Cables
| Left Connector SD Type | LC/PC single-mode |
|---|
Technical Information
| Max Operating Temperature | 185 degree Fahrenheit |
|---|---|
| Min Operating Temperature | -40 degree Fahrenheit |
Dimensions & Weight
| Height | 0.3 inch |
|---|---|
| Width | 0.5 inch |
| Depth | 2.2 inch |
Certifications & Listings
| ENERGY STAR Certified | No |
|---|---|
| EPEAT Compliant | No |
| TCO Certified | No |
