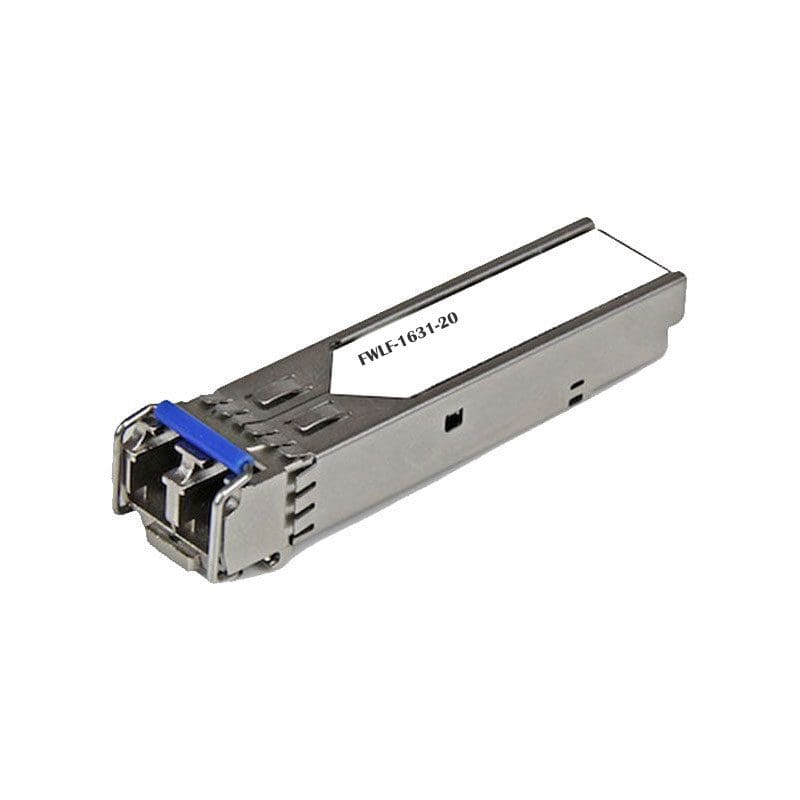

FWLF-1631-20 Finisar TX/RX Optical Fiber 2700Mbps 20-Pin
FWLF-1631-20 Overview
Dense Wavelength-Division Multiplexing (DWDM) Small Form Factor Pluggable (SFP) transceivers address communication network optics requirements that necessitate lower power and cost parameters.
$737.00
Shipping calculated at checkout.
FWLF-1631-20 Technical Specifications
Finisar TX/RX Optical Fiber 2700Mbps 20-Pin
| Manufacturer | Finisar |
|---|
- 192THz frequency and 1561.42nm wavelength
- Up to 2.7 Gb/s bi-directional data links Fast Ethernet
| Hot plug | gable SFP footprint |
|---|
- Temperature-stabilized DWDM rated DFB laser transmitter
- 100GHz ITU Grid, C-Band
- Low dispersion DFB laser with 120km reach performance
| Extended operating range | -5°C to 70°C case temperature |
|---|---|
| Wavelength | controlled within ± 0.1 nm over life and temperature |
| Extended link budget with APD receiver technology | |
| Form Factor | SFP |
| Device Type | Transceiver module |
| Interface (Bus) Type | Plug-in module |
| Connectivity Technology | Wired |
| Application | 2GBASE-DWDM |
| Data Transfer Rate | 2.67G |
| Wavelength | 1561.42nm |
| Max Distance | 80km |
| Fiber Type | SMF |
| Connector | Duplex LC |
| DDM | With DDM |
