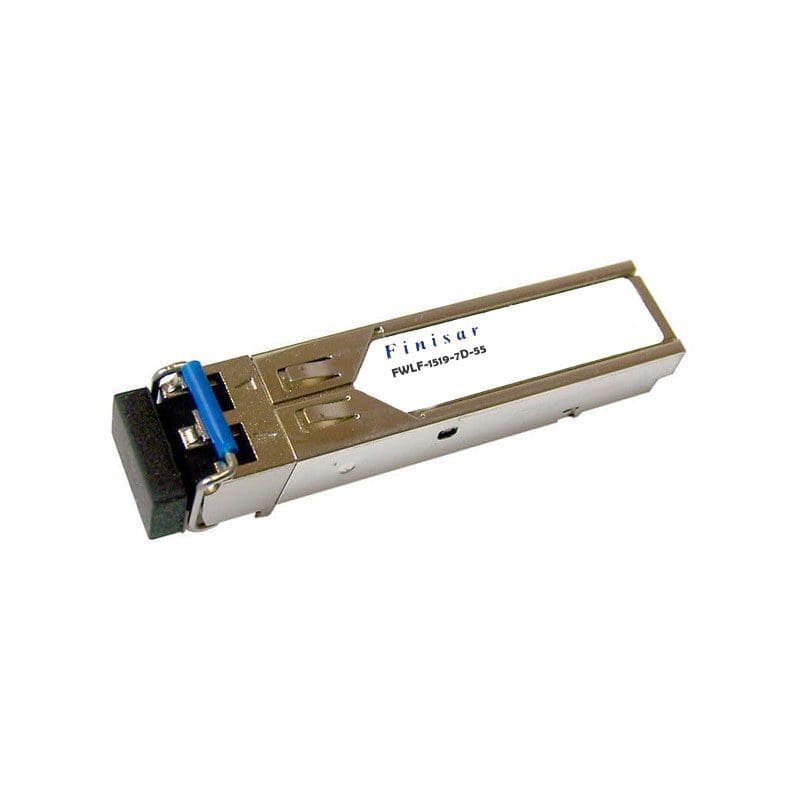

FWLF-1519-7D-55 Transceiver Module
FWLF-1519-7D-55 Overview
Fibre Optic Transmitters, Receivers, Transceivers 1470-1610nm DFB, 8 CWDM wavelengths, PIN, GigE, 1x FC, OC-12, single mode, pluggable SFP transceiver,
$251.00
Shipping calculated at checkout.
FWLF-1519-7D-55 Technical Specifications
Transceiver Module
| ECCN (US) 5A991.b.5.a |
Hts 8517.62.00.90
| Type | TX/RX |
|---|
Emitter Type DFB Laser
| Fiber Mode | Single Mode Fiber SMF |
|---|---|
| Connector Type | LC Connector Maximum Data Rate 1.25Gbps Gigabit Ethernet |
| Peak Wavelength | (nm) 1551/1620(Max) |
| Form Factor | SFP |
| Rise Time | (ns) 0.18/0.175 |
| Maximum | Fall Time (ns) 0.18/0.175 |
- Average Optical Output Power (dBm) 0 to 5
- Minimum Operating Supply Voltage (V) 3.15
Typical Operating Supply Voltage (V) 5|3.3
| Maximum | Operating Supply Voltage (V) 3.6 |
|---|---|
| Maximum Power | Dissipation (mW) 700 |
| Minimum Operating Temperature | (°C) 0 |
| Maximum Operating Temperature | (°C) 70 Pin Count 20 |
| Mounting | Snap Fit To Panel |
- Package Height 12.43
- Package Length 56.64
Package Width 14.8
| PCB | changed 20 |
|---|
