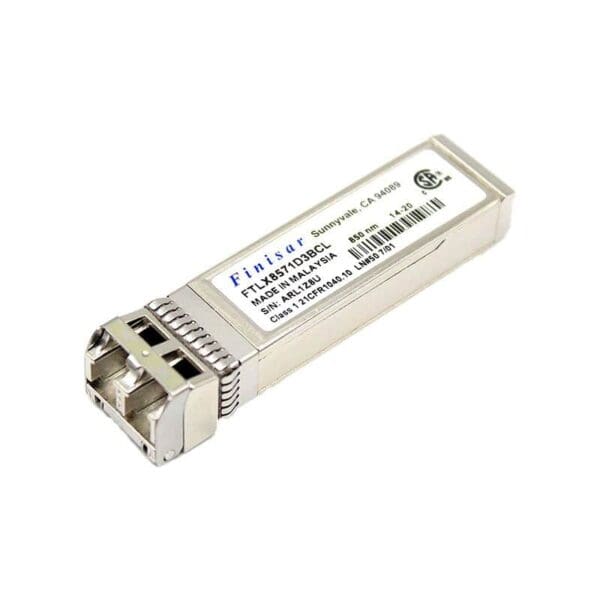

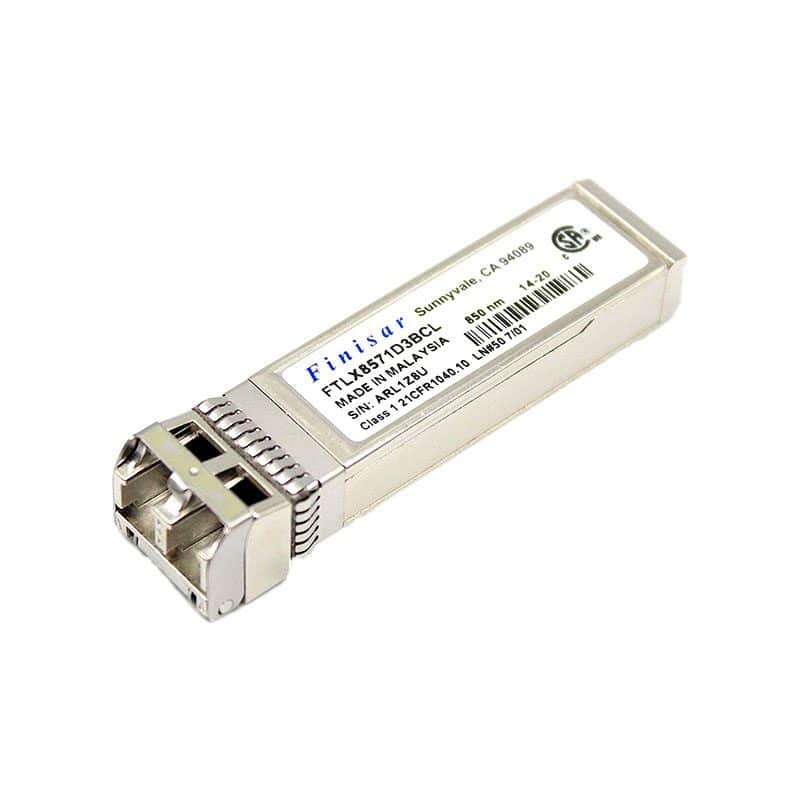

FTLX8571D3BCL Finisar SFP+ TAA Compliant Transceiver
FTLX8571D3BCL Overview
Finisar SFP+ TAA Compliant Transceiver
$23.00
Shipping calculated at checkout.
FTLX8571D3BCL Technical Specifications
Finisar SFP+ TAA Compliant Transceiver
| Manufacturer | Finisar |
|---|---|
| Hot plug | gable SFP+ footprint |
| Supports | 9.95 to 10.5 Gb/s bit rates (contact Finisar for higher data rate support) |
| Power | dissipation < 1W |
Single 3.3V power supply
| Maximum | link length of 400m on OM4 MMF |
|---|
Uncooled 850nm VCSEL laser
| Receiver | limiting electrical interface |
|---|---|
| LC Duplex connector | |
Built-in digital diagnostic functions
| Product | Transceivers |
|---|---|
| Wavelength | 860 nm |
| Data Rate | 9.95 GBd to 10.5 GBd |
| Form Factor or Case Style | SFP |
| Emitting Source | VCSEL |
| Operating Supply Voltage | 3.14 V to 3.46 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Application | Ethernet |
| Connector Type | LC |
| Brand | Coherent |
| Mounting Style | Snap-In |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
