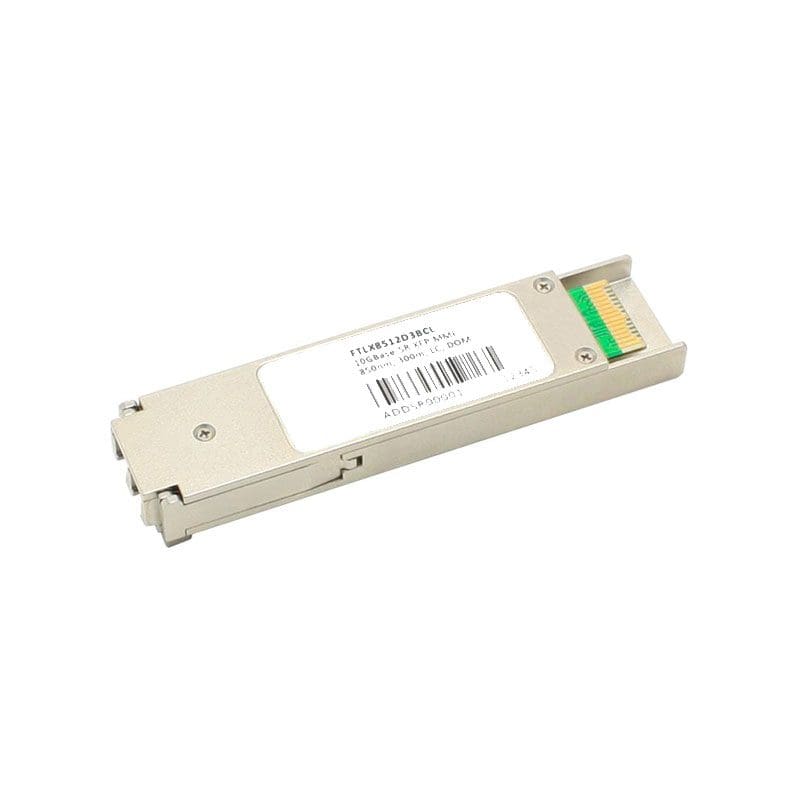

FTLX8512D3BCL Finisar RoHS-6 Compliant 10Gb/s 850nm
FTLX8512D3BCL Overview
Finisar’s FTLX8512D3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant
with the current XFP Multi-Source Agreement (MSA) Specification1
.
$108.00
Shipping calculated at checkout.
FTLX8512D3BCL Technical Specifications
Finisar RoHS-6 Compliant 10Gb/s 850nm
| Manufacturer | Finisar |
|---|---|
| Hot plug | gable XFP footprint |
| Supports | 8.5Gb/s to 10.5Gb/s* |
bit rates 10 Gigabit Ethernet
| Power | dissipation <1.5W |
|---|---|
| Maximum | link length of 300m |
Uncooled 850nm VCSEL laser.
- LC Duplex connector
- No Reference Clock required
Built-in digital diagnostic functions
| Standard | bail release mechanism |
|---|---|
| Product | Transceivers |
| Wavelength | 850 nm |
| Data Rate | 10.5 GBd |
| Fibre Type | Multimode |
| Form Factor or Case Style | XFP |
| Rise Time | 40 ps |
| Emitting Source | VCSEL |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | – 5 C |
| Maximum Operating Temperature | + 70 C |
| Application | Ethernet, Fibre Channel |
| Connector Type | LC |
| Transmission Distance | 300 m |
| Brand | Coherent |
| Mounting Style | Snap-In |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
