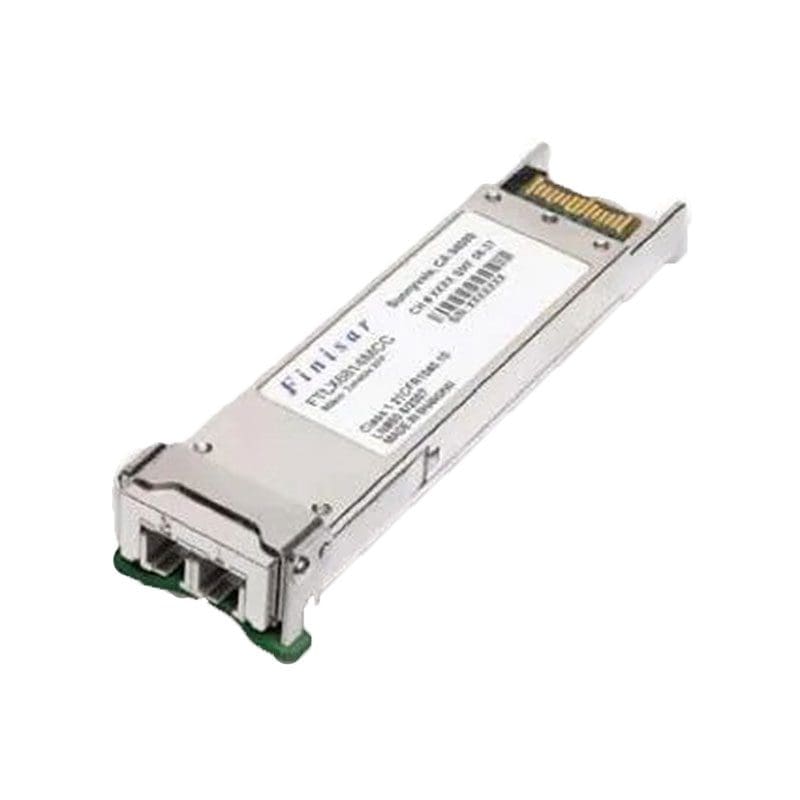

FTLX6811MCC Finisar TX/RX Optical Fiber 11.3Gbps
FTLX6811MCC Overview
The Finisar FTLX6811MCC 10GBASE-ZR/ZW Ethernet transceiver is a DWDM XFP transceiver
for optical communications, rated for distances up to 80 km and a maximum bandwidth of
10Gbps. This transceiver operates at 50GHz wavelength. DWDM, FULL BANDTUNABLE (C-BAND), 50GHZ SPACING, APD
$2,995.00
Shipping calculated at checkout.
FTLX6811MCC Technical Specifications
Finisar TX/RX Optical Fiber 11.3Gbps
| Manufacturer | Finisar |
|---|
Tunable XFP (T-XFP) transceiver module
| Supports | 8.5 to 11.3 Gb/s 10 Gigabit Ethernet |
|---|
- DWDM 10GBASE-ZR/ZW Ethernet
- DWDM SONET/SDH OC-192 IR-2
- DWDM 10Gb/s Fibre Channel
- Up to 80 km reach over Single mode (SMF)
- -300 to +1600 ps/nm Dispersion Tolerance
- 50GHz ITU-based channel spacing (C-Band)
Monolithic MZM Tunable TOSA
| Temperature range | -5°C to 70°C |
|---|---|
| Power | dissipation <3.5W |
| Built-in digital diagnostic functions | |
High performance APD Receive
| Maximum Operating Temperature (°C) | 70 |
|---|---|
| Mounting | Snap Fit To Panel |
| Package Height | 13.3 |
| Package Width | 22.15 |
| Package Length | 78 |
| PCB changed | 30 |
| Pin Count | 30 |
