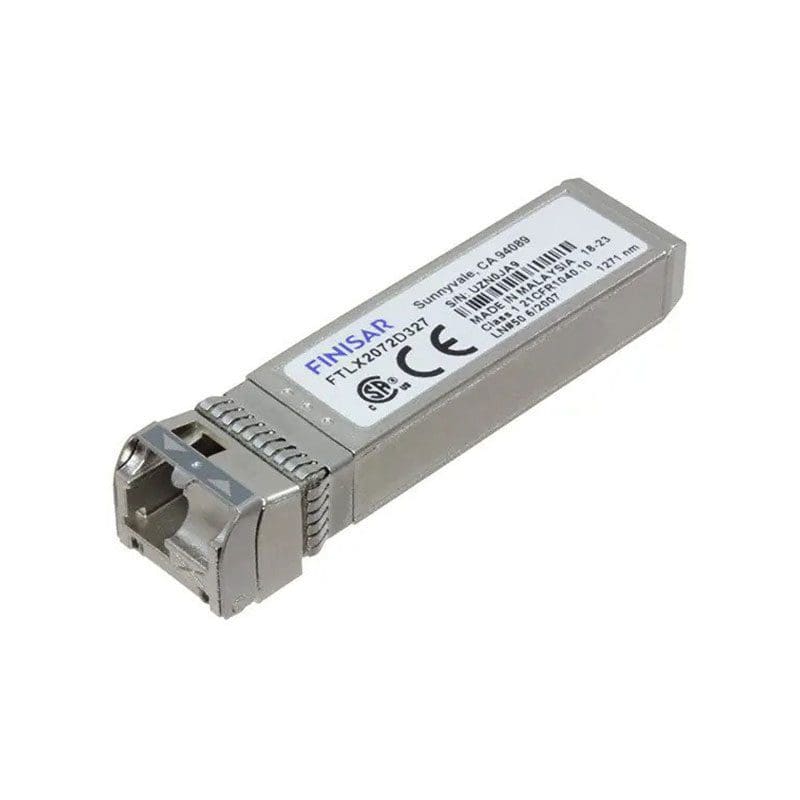

FTLX2072D327 Finisar Transceiver Module
FTLX2072D327 Overview
Fibre Optic Transmitters, Receivers, Transceivers TXRX 1271NM/1331NM D
$81.00
Shipping calculated at checkout.
FTLX2072D327 Technical Specifications
Transceiver Module
| Manufacturer | Finisar |
|---|---|
| Product Category | Fibre Optic Transmitters, Receivers, Transceivers |
| Brand | Finisar |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
| EU RoHS | Compliant |
| Eccn (Us) | 5A991.b.5.a |
| Part Status | Active |
| HTS | 8517.62.00.90 |
| Automotive | Unknown |
| Ppap | Unknown |
| Type | TX/RX |
| Emitter Type | DFB Laser |
| Fiber Mode | Single Mode |
| Connector Type | LC |
| Maximum Data Rate | 11.3Gbps |
| Peak Wavelength (nm) | 1271 |
| Form Factor | SFP+ |
| Rise Time (ns) | 0.028(Min) |
| Maximum Fall Time (ns) | 0.028(Min) |
| Minimum Operating Supply Voltage (V) | 3.14 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Operating Supply Voltage (V) | 3.46 |
| Maximum Power Dissipation (mW) | 1000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Mounting | Snap Fit To Panel |
