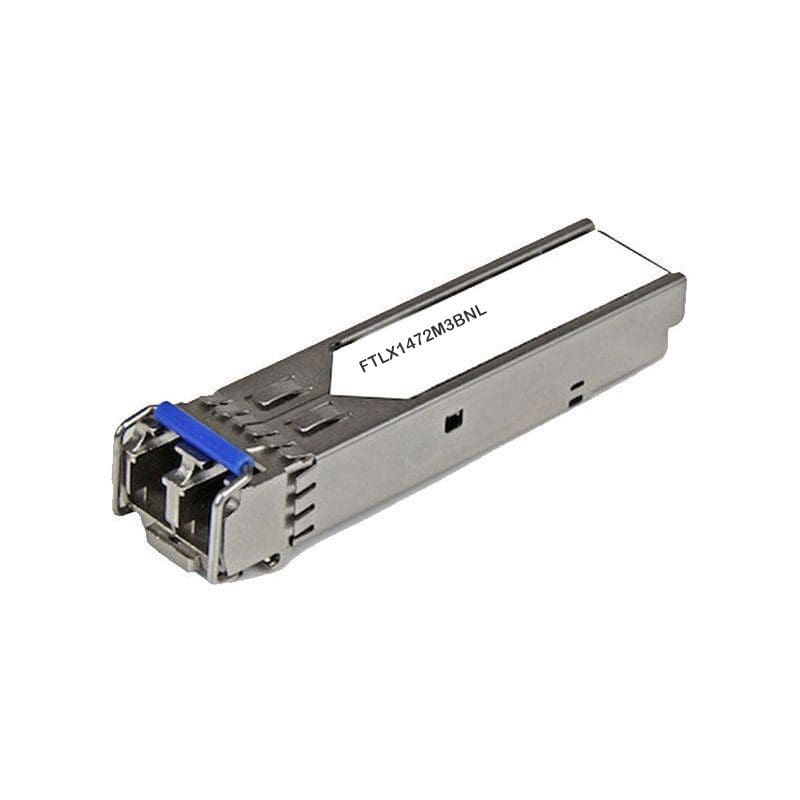

FTLX1472M3BNL Finisar 10Gb/s Multi-Rate, 10km Single Mode SFP+
FTLX1472M3BNL Overview
Finisar’s FTLX1472M3BNL 10Gb/s Enhanced Small Form Factor Pluggable SFP+
transceivers are designed for use in links up to 10km over G.652 single mode fiber
$135.00
Shipping calculated at checkout.
FTLX1472M3BNL Technical Specifications
Finisar 10Gb/s Multi-Rate, 10km Single Mode SFP+
| Manufacturer | Finisar |
|---|---|
| Hot plug | gable SFP+ footprint |
- Up to 10km link length
- 6.14, 8.5 & 9.83 through 11.3 Gb/s 10 Gigabit Ethernet
- -5 to 85 °C extended temp. range
- < 1.5W power dissipation,
- < 1.0W with CDR’s OFF
- Single 3.3V power supply
- Un-cooled 1310nm DFB laser
- Limiting electrical interface
| receiver |
|
|---|---|
| Product | Transceivers |
| Wavelength | 1310 nm |
| Data Rate | 11.3 GBd |
| Fibre Type | Singlemode |
| Form Factor or Case Style | SFP+ |
| Rise Time | 28 ps |
| Emitting Source | Laser |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | – 5 C |
| Maximum Operating Temperature | + 85 C |
| Application | Ethernet, Fibre Channel |
| Connector Type | LC |
| Transmission Distance | 10 km |
| Brand | Coherent |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
