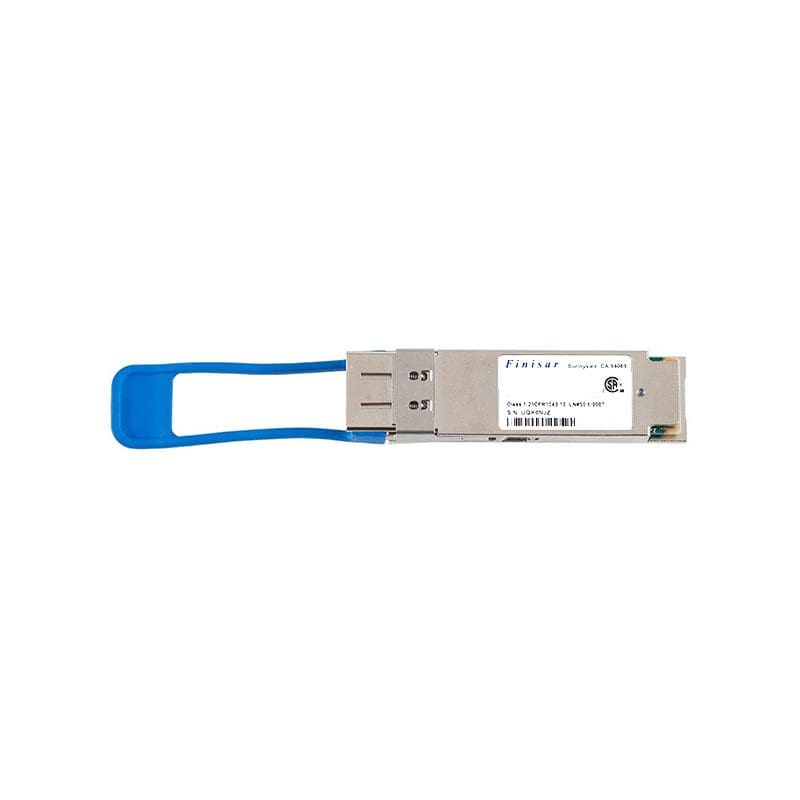

FTLC1154RDPL Finisar Transceiver Module
FTLC1154RDPL overview
Fibre Optic Transmitters, Receivers, Transceivers XCVR,QSFP28, 10km,100GBASE-LR4,4x 13XXnm LAN-WDM DFB,SMF,pull tab,LC,ROHS compliant, 3.3V, 3.5W, 0/70 C operation, Gen2
$849.00
Shipping calculated at checkout.
FTLC1154RDPL Technical Specifications
Transceiver Module
| Manufacturer | Finisar |
|---|---|
| Product | Category: Fibre Optic Transmitters, Receivers, Transceivers |
| Product | Transceivers |
| Wavelength | 1310 nm |
| Data | Rate: 100 Gb/s 100 Gigabit Ethernet |
| Fibre Type | Single mode Fibre SMF |
| Form Factor or Case Style | QSFP |
| Rise Time | 12 ps |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Application | Ethernet |
| Connector Type | LC Connector |
| Brand | Finisar |
| Mounting Style | Pluggable |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
Technical Information
| Max Operating Temperature | 158 degree Fahrenheit |
|---|---|
| Min Operating Temperature:32 degree Fahrenheit | |
Product Information
| Packaged Quantity | 1 |
|---|
Physical Characteristics
| Color Category | Blue, Gray |
|---|
Certifications & Listings
| Compliant Standards | MSA, RoHS 2011/65/EU |
|---|---|
| ENERGY STAR Certified | No |
