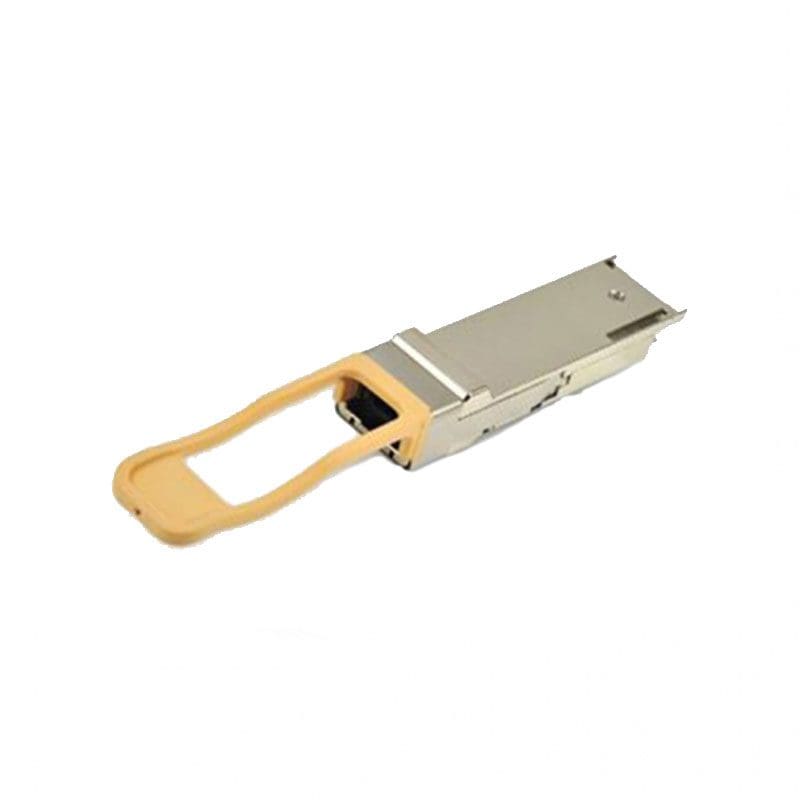

FTL4P1QM1C Finisar Transceiver Module
FTL4P1QM1C Overview
Finisar 4x10GBASE-LR and OTN 10km QSFP+ Optical Transceiver
$1,267.00
Shipping calculated at checkout.
FTL4P1QM1C Technical Specifications
Transceiver Module
| Manufacturer | Finisar |
|---|---|
| Hot-Pluggable | QSFP Plus Transceiver Module |
| Supports | 4 independent streams of 10G Ethernet or OTN data |
- 4x10GBASE-LR/LW 10G Ethernet Applications
- OTN OTU2, OTU1e, OTU2e Applications
- 44.6 Gb/s aggregate bit rates 40 Gigabit Ethernet
- Up to 10km reach over Single mode Fiber (SMF)
- XLPPI electrical interface
- MPO12 receptacle
Single 3.3V power supply
| Power | dissipation < 2.5W |
|---|---|
| Built-in digital diagnostics, including Tx/Rx power monitoring | |
| Commercial temperature range | 0°C to 70°C |
