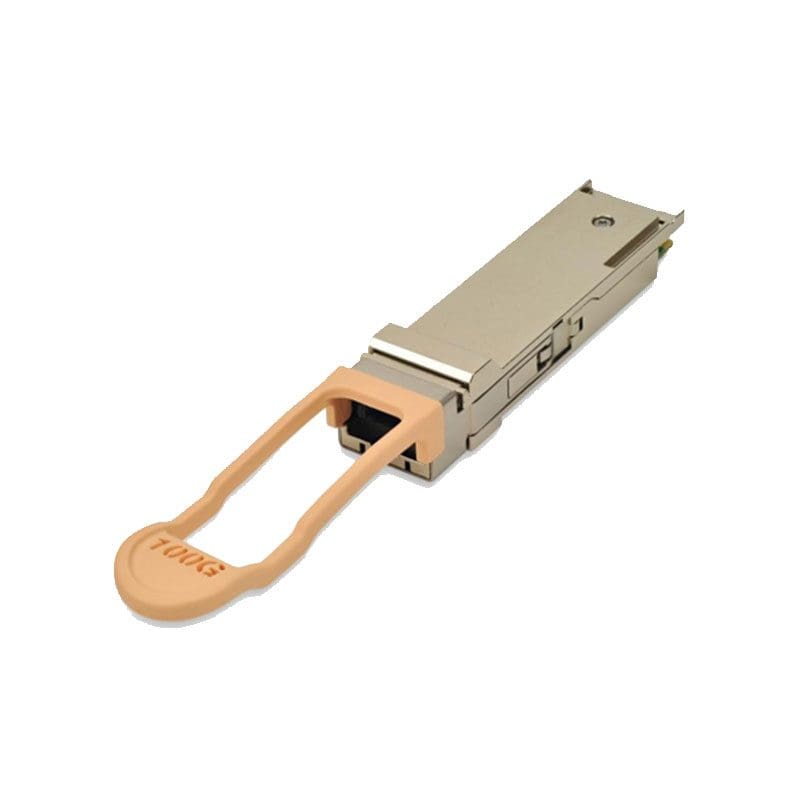

FTL410QE4C Finisar 40BASE-SR4 QSFP+ Gen4 Optical Transceiver Module
FTL410QE4C Overview
FTL410QE4C QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to four 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring.
$117.00
Shipping calculated at checkout.
FTL410QE4C Technical Specifications
40BASE-SR4 QSFP+ Gen4 Optical Transceiver Module
| Four-channel full-duplex |
transceiver module
| Hot Plug | gable QSFP Plus form factor |
|---|---|
| Maximum | link length of 100m on |
- OM3 Multimode Fiber (MMF) and
- 150m on OM4 MMF
| Multirate capability | 1.06Gb/s to |
|---|
- 10.5Gb/s per channel 10 Gigabit Ethernet
- Unretimed XLPPI electrical
Interface
| Max power | dissipation <1W |
|---|
- Reliable VCSEL array technology
- Built-in digital diagnostic
- functions, including optical power
- monitoring
Commercial operating case
| temperature range | 0ºC to 70ºC |
|---|---|
| Single 1×12 MPO receptacl | |
