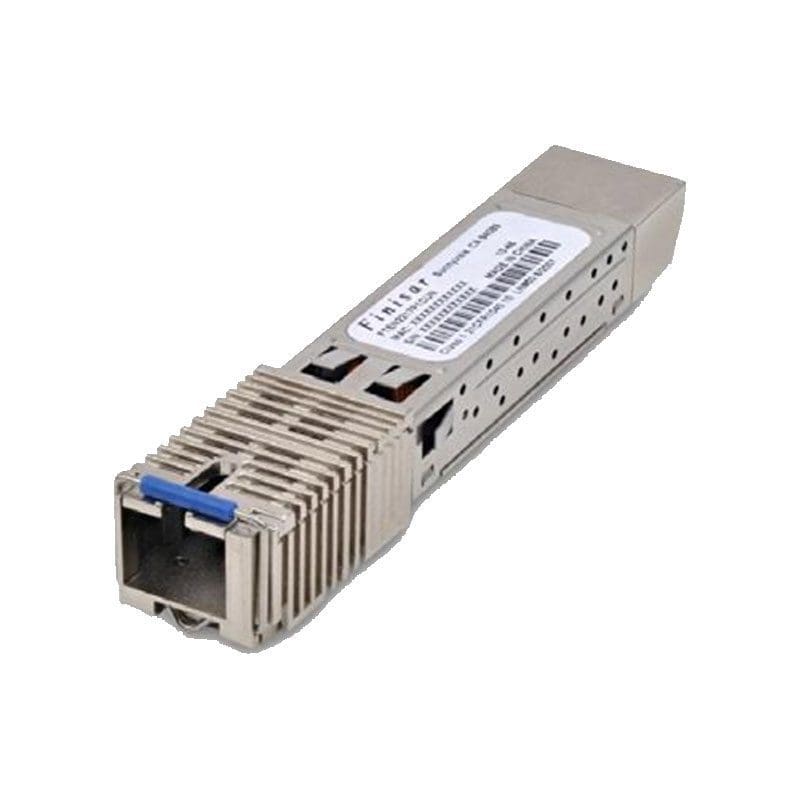

FTEN2116P1NUN Finisar Transceiver Module
FTEN2116P1NUN Overview
Transmisores, receptores y transceptores de fibra óptica 1.25Gbps/1.25Gbps bi-dir trnscvr, 20km
$199.00
Shipping calculated at checkout.
FTEN2116P1NUN Technical Specifications
Finisar Transceiver Module
| Manufacturer | Finisar |
|---|
- 1G EPON ONU in MSA SFP package
- 1G EPON Optical Interface
| Compliance | with IEEE802.3ah and CTC OAM |
|---|
- GbE Interface with the Host Equipment (1000Base-X)
- 20km reach over Single mode Fiber (SMF)
| Bi-Directional | 1490nm (Downstream) / 1310nm (Upstream) |
|---|---|
| SC Receptacle | |
Built-in digital diagnostic functions
| Product | Transceivers |
|---|---|
| Wavelength | 1360 nm |
| Data Rate | 1250 MBd |
| Fibre Type | Singlemode |
| Form Factor or Case Style | SFP |
| Operating Supply Voltage | 3.15 V to 3.45 V |
| Minimum Operating Temperature | – 30 C |
| Maximum Operating Temperature | + 85 C |
| Application | Ethernet |
| Connector Type | SC |
| Packaging | Tray |
| Brand | Coherent |
| Mounting Style | Snap-In |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
