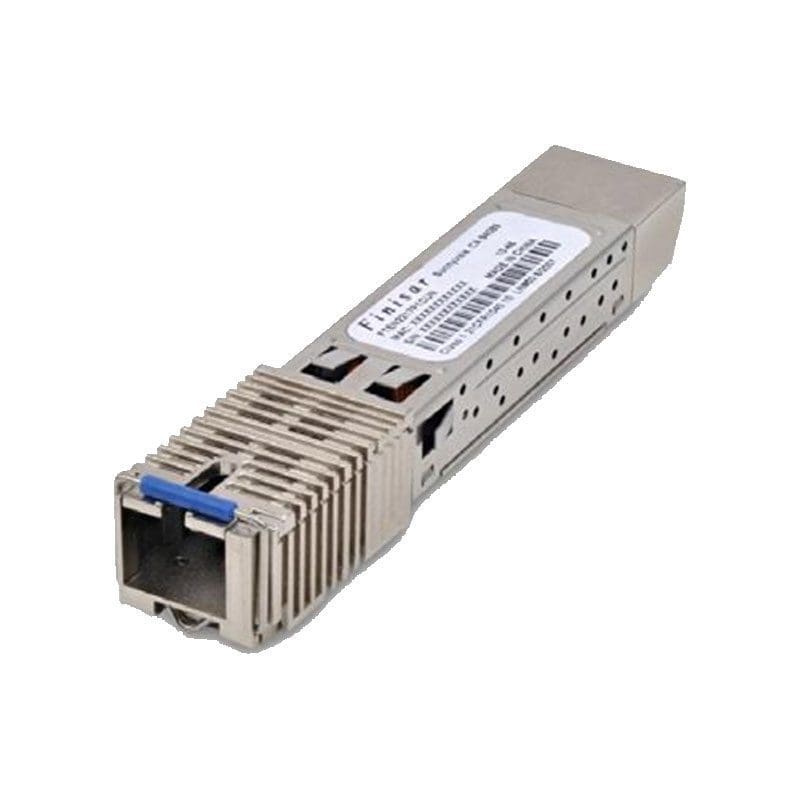

FTEN2115P1NUN Finisar EPON Stick (EPON SFP ONU)
FTEN2115P1NUN Overview
Finisar’s EPON Sticks are combination of a SFP transceiver with a built-in EPON ONU.
They comply with IEEE802.3ah EPON standard and optionally, CTC OAM
specifications, or DPoETM specifications. Digital diagnostics functions are available via
the 2-wire serial bus specified in the SFP MSA.
$99.00
Shipping calculated at checkout.
FTEN2115P1NUN Technical Specifications
Finisar EPON Stick (EPON SFP ONU)
| Manufacturer | Finisar |
|---|
EPON ONU in MSA SFP Footprint
| Compliance | with IEEE802.3ah1 |
|---|
- Optional CTC OAM Support, or
- DPoETM Support
- Built-in Digital Diagnostics
- Functions
- Single fiber Bi-Directional SC
Receptacle SMF
| Compatibility | with EPON OLTs and |
|---|
CPE Equipment
| Product | Transceivers |
|---|---|
| Wavelength | 1360 nm |
| Data Rate | 1250 MBd |
| Fibre Type | Singlemode |
| Form Factor or Case Style | SFP |
| Operating Supply Voltage | 3.15 V to 3.45 V |
| Minimum Operating Temperature | – 30 C |
| Maximum Operating Temperature | + 85 C |
| Application | Ethernet |
| Connector Type | SC |
| Brand | Coherent |
| Mounting Style | Snap-In |
| Product Type | Fiber Optic Transmitters, Receivers, Transceivers |
