FPR2120-ASA-K9 Technical Specifications

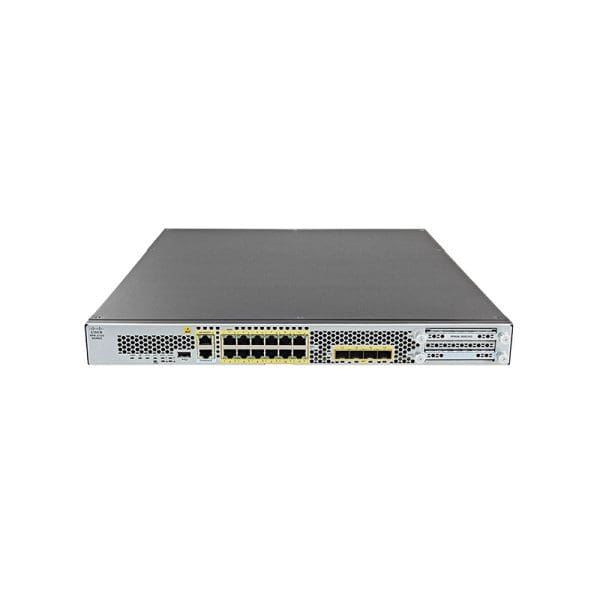

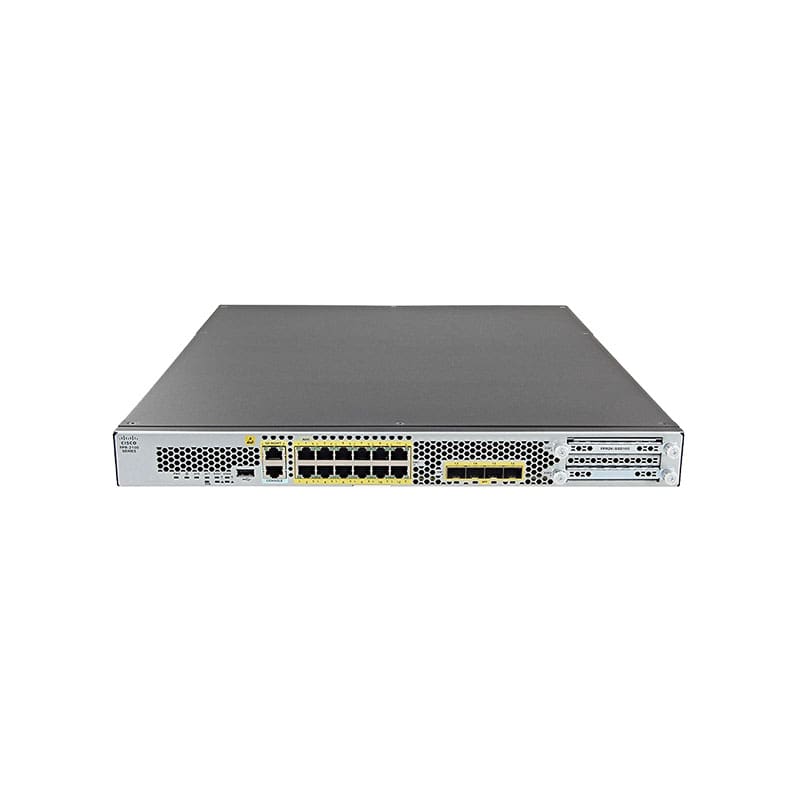

Cisco Firepower 2120 ASA- Security Appliance 1u Rack-mountable Firewall
| Manufacturer | Cisco |
|---|---|
| Part Number or SKU# | FPR2120-ASA-K9 |
| Device Type | Security Appliance-8 Port |
Processor / Memory / Storage
| Hard Drive | 1 SSD of 100 GB |
|---|
Networking
| Form Factor | Rack-mountable (fits in a server rack) |
|---|---|
| Connectivity Technology | Wired (connects via cables) |
Performance
| Firewall Throughput | 6 Gbps |
|---|---|
| Maximum Throughput FW + AVC | 3 Gbps |
| Maximum Throughput FW + AVC + NGIPS | 3 Gbps |
| IPsec VPN Throughput | 1 Gbps |
| Multiprotocol Firewall Throughput | 3 Gbps |
| IPsec VPN Throughput (450b UDP L2L Test) | 700 Mbps |
Expansion / Connectivity
| Expansion Slots | 1 total, 1 free |
|---|
Interfaces
- 12 x 1000BASE-T – RJ-45 (Ethernet ports)
- 4 x 1000BASE-X
- 1 x 1000BASE-T (Management) – RJ-45
- 1 x Serial – RJ-45
- 1 x USB 2.0 – Type A
