EX9253-RED-AC Technical Specifications

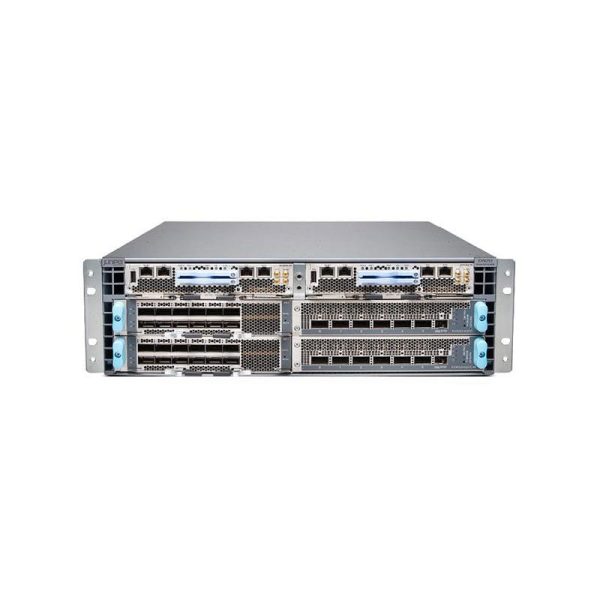

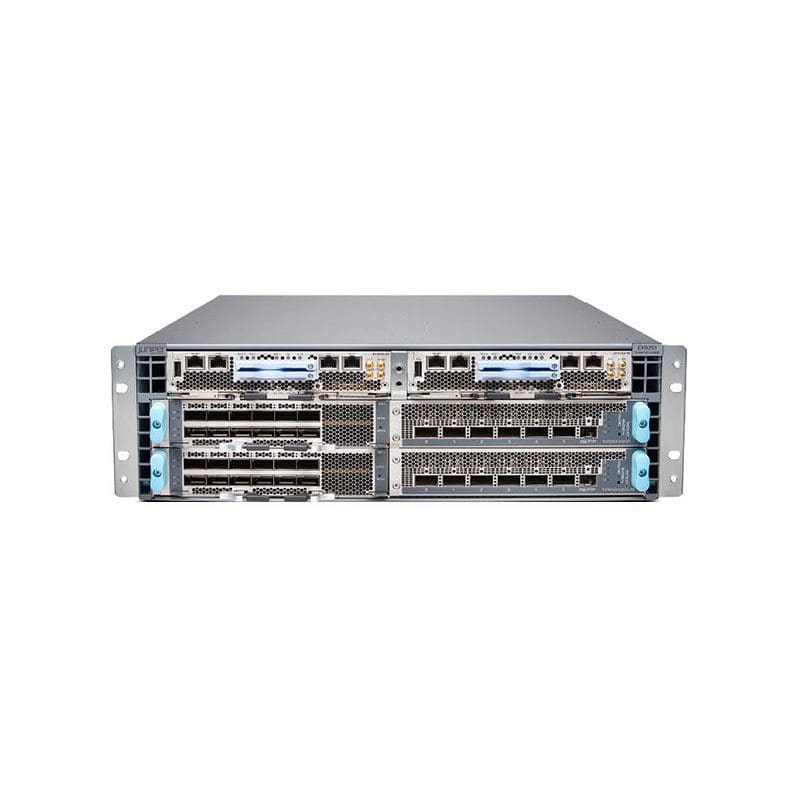

Juniper Networks EX Series 9253 Redundant switch managed rackmount
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX Series |
| Model | :9253 |
| Edition | Redundant |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | :4 x 100 GB SSD |
|---|
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :4
Processor
| Type | Xeon |
|---|---|
| Installed Qty | :2 |
| Manufacturer | Intel |
| Clock Speed | :1.6 GHZ |
RAM
| Installed Size | :128 GB |
|---|
Performance
| Performance :Maximum throughput | up to 4.8 Tbps |
|---|
Capacity
| Capacity :MAC addresses | up to 1000000, Queues per port (egress): 8, IPv4 routes (Multicast): up to 256000, IPv6 routes (Multicast): up to 256000, IPv4 routing information base (RIB): 1000000, VLANs supported: 32000, IPv6 routing information base (RIB): 1000000 |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | :100 Gigabit Ethernet |
| Form Factor | Rack-mountable |
