EX9253-AC-BND1 Technical Specifications

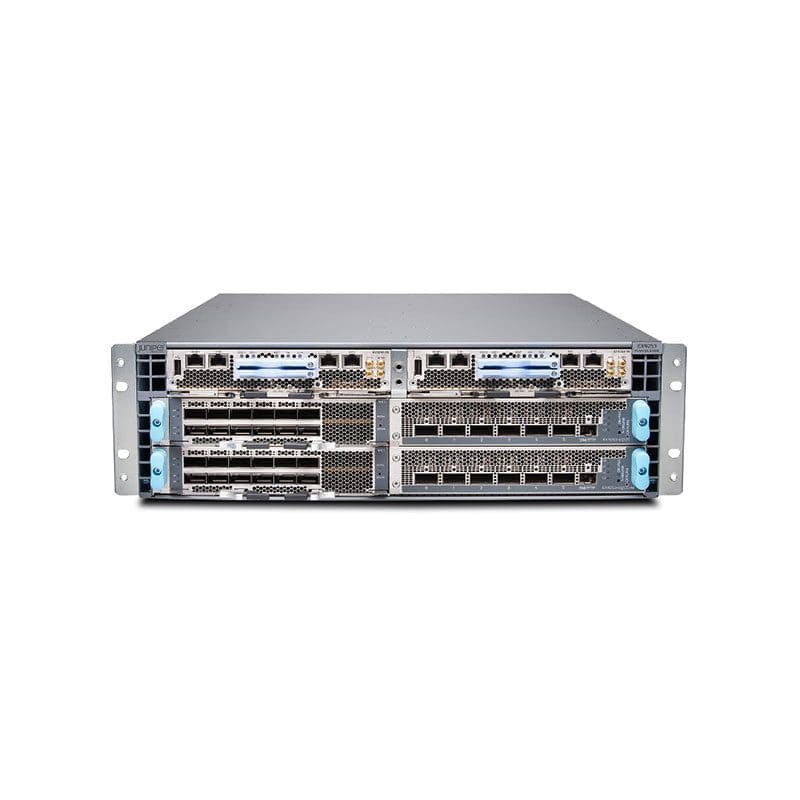

Juniper Networks EX Series 9253 Bundle switch managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX Series |
| Model | :9253 |
| Edition | Bundle |
| Bundled with | Juniper Networks EX9253-6Q12C Line Card |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|---|
| Built-in Devices | :2 x 100 GB SSD |
- Installed Devices / Modules Qty :0
- Supported Devices / Modules Qty :3
Processor
| Type | Xeon |
|---|---|
| Installed Qty | :1 |
| Manufacturer | Intel |
| Clock Speed | :1.6 GHZ |
RAM
| Installed Size | :64 GB |
|---|
Performance
| Performance :Bandwidth per slot | 2.4 Tbps, Maximum throughput: 4.8 Tbps, Bandwidth (full duplex): 1.2 Tbps |
|---|
Capacity
| Capacity :QoS hardware queues per port | 8, Virtual interfaces (VLANs): 32000, FIB entries: 512000, ARP entries: 512000, Multicast entries (IPv4): 256000, Policies: 16000, Multicast entries (IPv6): 256000 |
|---|
