EX9253-6Q12C-M Technical Specifications

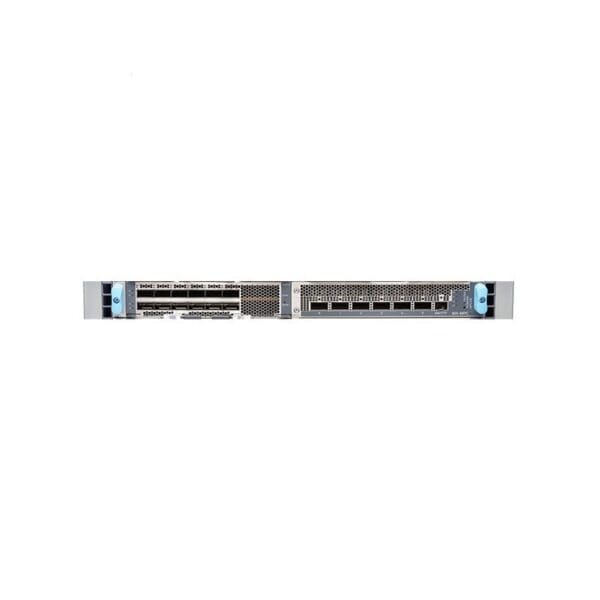

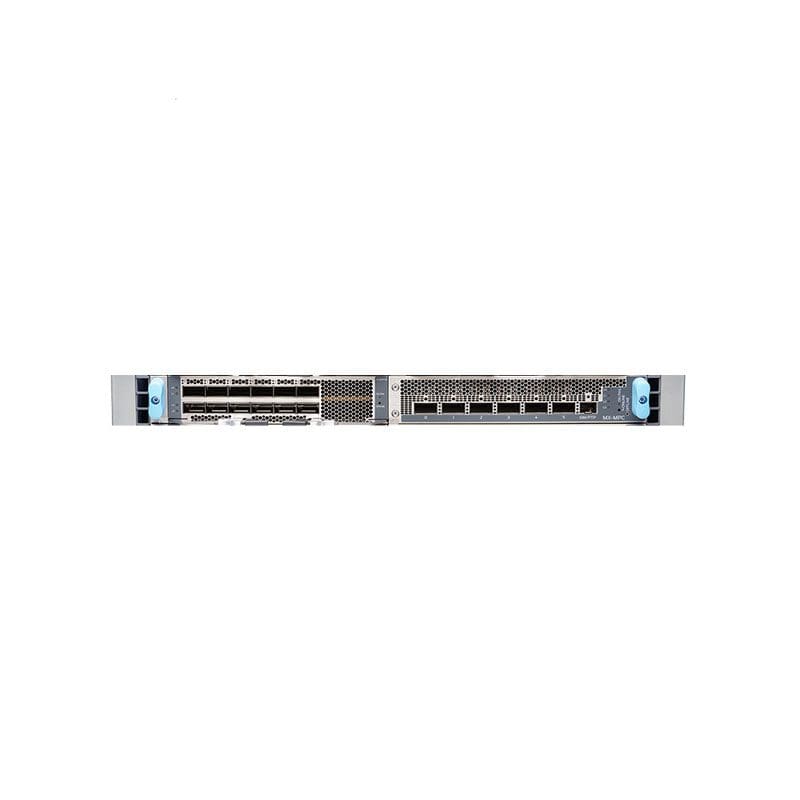

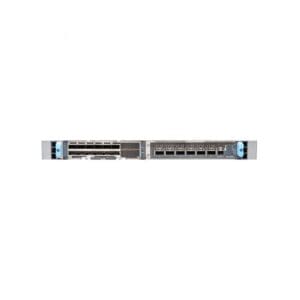

Juniper Networks Line Card expansion module 100 Gigabit
| Manufacturer | Net screen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Packaged Quantity | :1 |
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Link Protocol | :100 Gigabit Ethernet, 40 Gigabit Ethernet |
| Status Indicators | Link OK, Offline, Online |
| Features | Media Access Control Security (MACsec) |
Ports
| Qty | :12 |
|---|---|
| Type | :100 Gigabit QSFP28 |
| Ports | (2nd) |
| Qty | :6 |
| Type | :40 Gigabit QSFP+ |
Interface Provided
| Interfaces | :6 x 40Gb Ethernet – QSFP+ – female, 12 x 40Gb Ethernet/100Gb Ethernet – QSFP28 – female |
|---|
Power Device
| Power Consumption Operational | :740 watt |
|---|
Miscellaneous
| Color Category | Gray |
|---|---|
| Pricing Type | Field Replaceable Unit (FRU) |
Dimensions & Weight
| Width | :1.3 inch |
|---|---|
| Depth | :22 inch |
| Height | :17 inch |
| Weight | :14.55 lbs |
