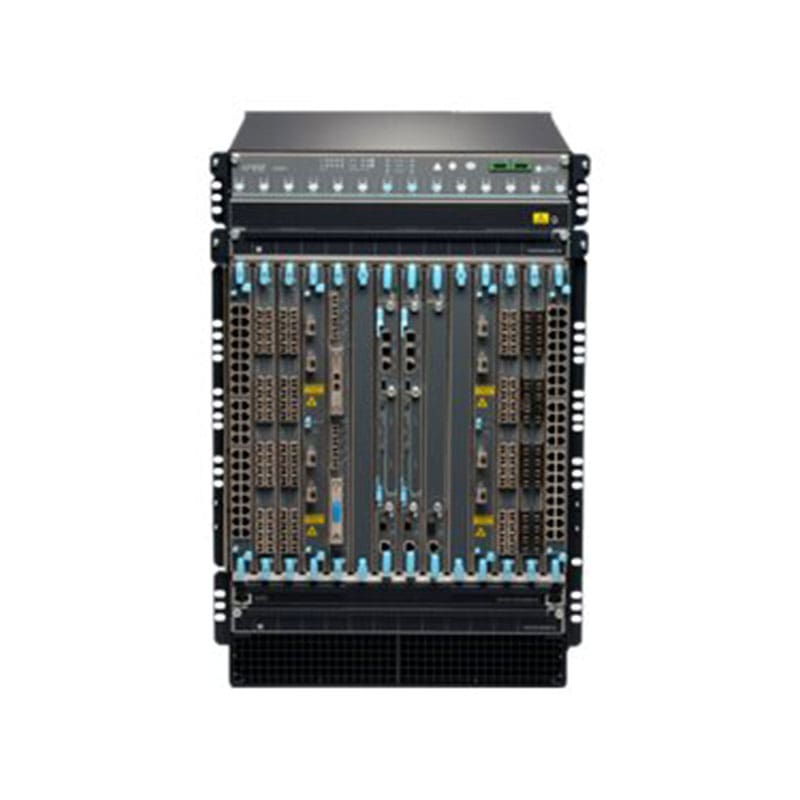

EX9214-RED3C-AC Technical Specifications
Juniper Networks EX Series 9214 Switch Managed Rack-Mountable
Dimensions & Weight
| Width | 17.5 in |
|---|---|
| Depth | 27.8 in |
| Height | 27.8 in |
| Weight | 203.48 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 95% (non-condensing) |
General
| Device Type | Switch – L3 – managed |
|---|---|
| Enclosure Type | Front to back airflow rack-mountable 16U |
| Processor | 1 x Intel: 1.73 GHz |
| RAM | 16 GB |
| Built-in Devices | Midplane |
Expansion / Connectivity
| Installed Modules Qty (Max) | 4 (installed) / 16 (max) |
|---|
Power
| Power Device | Internal power supply – hot-plug |
|---|---|
| Installed Qty | 2 |
| Max Supported Qty | 4 |
| Power Redundancy | Yes |
| Power Redundancy | Scheme 1+1 |
| Power Provided | 4100 Watt |
