EX9208-REDUND-AC Technical Specifications

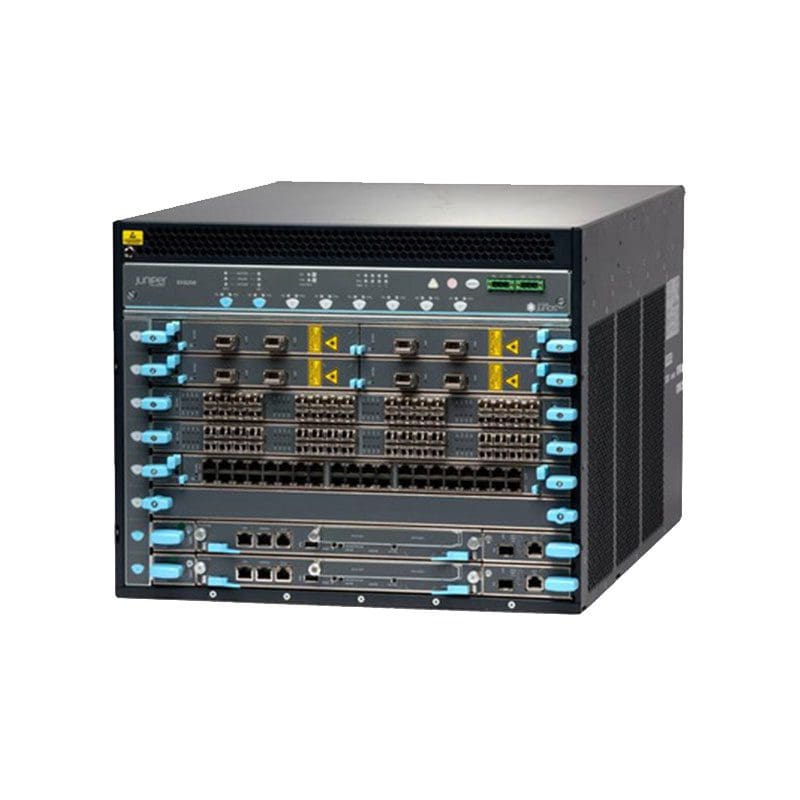

Juniper Networks EX Series 9208 switch managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX Series |
| Model | :9208 |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Side to side airflow |
|---|---|
| Built-in Devices | :2 x 32 GB SSD, Midplane |
- Installed Devices / Modules Qty :4
- Supported Devices / Modules Qty :10
Processor
| Installed Qty | :1 |
|---|---|
| Manufacturer | Intel |
| Clock Speed | :1.73 GHZ |
RAM
| Installed Size | :16 GB |
|---|
Performance
| Performance :Per slot per fabric | 240 Gbps, Backplane switching capacity: 4.8 Tbps |
|---|
Capacity
| Capacity :ARP entries | 256000, Virtual interfaces (VLANs): 32000, Multicast entries (IPv4): 256000, QoS hardware queues: 8, IPv4 routing table entries: 1000000, Multicast entries (IPv6): 256000, Policies: 16000, IPv6 routing table entries: 1000000 |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Form Factor | Rack-mountable |
