EX9208-CHAS3-S Technical Specifications

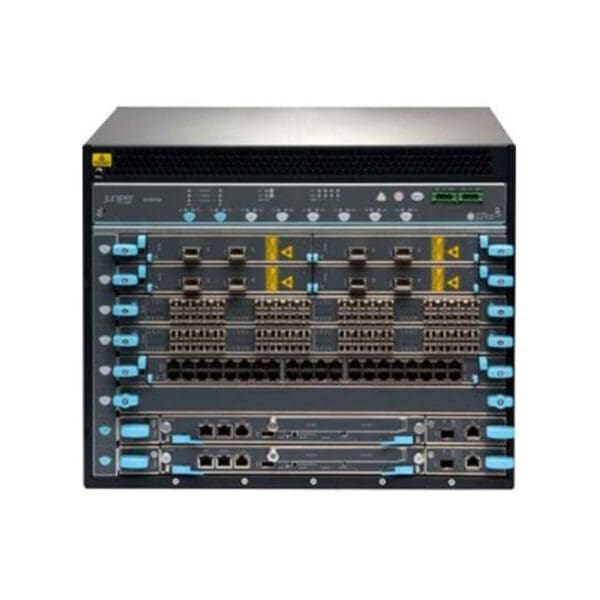

Juniper Networks EX9208 Chassis 3 with Passive Midplane
| Manufacturer Part Number | EX9208-CHAS3-S |
|---|---|
| Product Type | Switch Chassis |
| Manageable | Yes |
| Number of Total Expansion Slots | 8 |
| Product Family | EX9200 |
| Stack Port | No |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | Line Card, Routing Engine, Switch Fabric |
| Form Factor | Rack-mountable |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 8U |
| Modular | No |
| Port / Expansion Slot Details | 8 x Expansion Slot |
| Height | 14″ |
| Width | 17.5″ |
| Depth | 27.8″ |
| Product Series | EX9200 |
| Product Model | EX9208 |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Management Port | Yes |
| Bypass | No |
