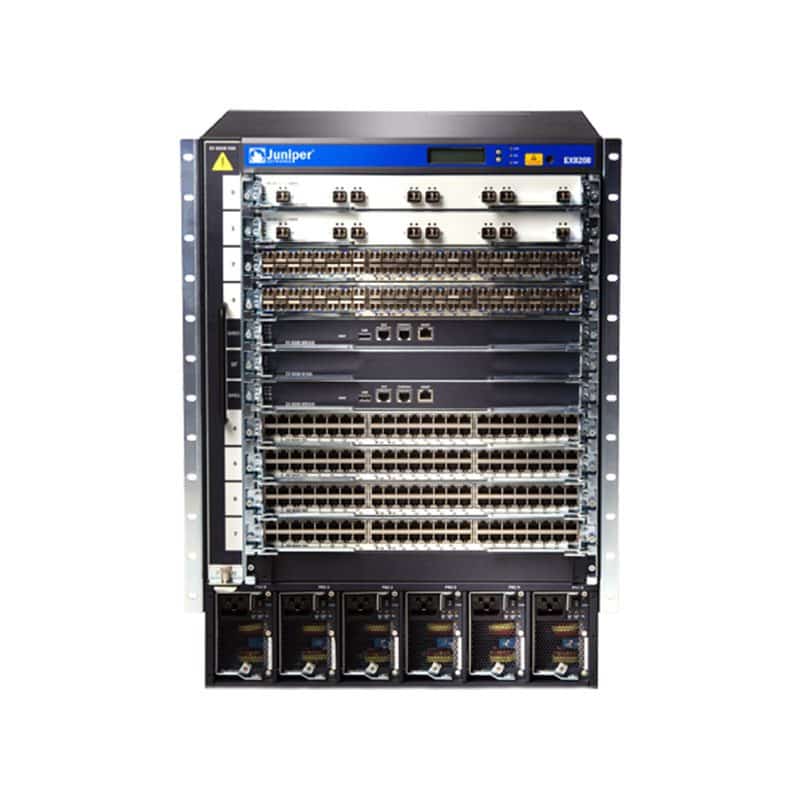

Refurbished EX8208-BASE-AC3 Technical Specifications
Juniper Networks EX 8208 switch managed
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX 8208 |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | Status LCD |
|---|
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :8
RAM
| Installed Size | :2 GB |
|---|
Flash Memory
| Installed Size | :2 GB, 2 GB |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Form Factor | Desktop |
| Routing Protocol | IGMPv3, OSPFv2, RIP-1, RIP-2, VRRP, IGMP, IGMPv2, OSPF |
| Manageable | Yes |
| Remote Management Protocol | SSH-2, SNMP 3, SNMP 2c, HTTPS, SNMP 1, RMON 2, HTTP, RMON 1, RMON 9, RMON 3 |
| Power Over Ethernet (PoE) | PoE |
| Status Indicators | LCD display |
| Features | Multiple Spanning Tree Protocol (MSTP) support, Non-Stop Routing (NSR), IGMP snooping, ARP support, Spanning Tree Protocol (STP) support, Graceful Route Engine Switchover (GRES), BOOTP support, Rapid Spanning Tree Protocol (RSTP) support, Jumbo Frames support, Bidirectional Forwarding Detection (BFD), Firewall protection, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), Flow control, VLAN support, Temperature sensor, DHCP server, Per-VLAN Spanning Tree (PVST) |
| Compliant Standards | IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.3, IEEE 802.1s, IEEE 802.1x, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q |
Expansion Slots
| Expansion Slots | :8 (total) / 6 (free) x expansion slot |
|---|
Interface Provided
| Interfaces | :1 x serial, 1 x console management, 1 x Ethernet management |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :6 |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | :6 kilograms per millimetere |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Authentication Method | TACACS+, RADIUS |
|---|---|
| Compliant Standards | UL 60950-1, EN 60950-1, cUL, IEC 825-1/EN 60825-1 class 1, TUV GS, CSA C22.2 No. 60950-1-03, CSA 22.2 No. 60950, IEC 60950-1 |
Dimensions & Weight
| Width | :17.2 inch |
|---|---|
| Depth | :20.9 inch |
| Height | :24.3 inch |
| Weight | :148.37 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
