EX4600-40F-S Technical Specifications

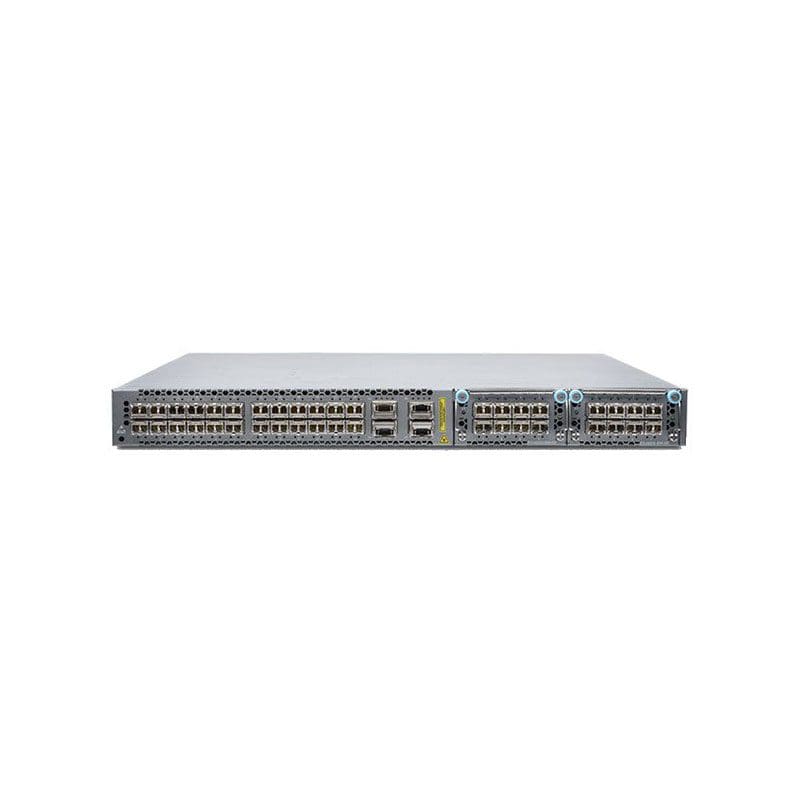

Juniper Networks EX Series EX4600 switch 24 ports managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX Series |
| Model | EX4600 |
| Packaged Quantity | :1 |
Performance
| Performance :Switching capacity | 1.44 Tbps, Switching capacity: 1.07 Bpps |
|---|
Capacity
| Capacity :Virtual interfaces (VLANs) | 4091, Firewall policies: 4000, IPv4 hosts: 208000, QoS hardware queues per port: 12, IPv4 routes (Multicast): 104000, IPv6 routes (Multicast): 52000, Multiple Spanning Tree Protocol instances: 64, VLAN Spanning Tree Protocol instances: 253, Maximum member ports per LAG: 32, IPv4 routes (Unicast): 128000, LAG groups: 128, IPv6 routes (Unicast): 64000, ARP entries: 48000, Equal-Cost Multipathing (ECMP) ways: 64 |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | :10 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Ports Qty | :24 |
| Fibre Channel | FC-BB-6 |
| Advanced Switching | Layer 3 |
