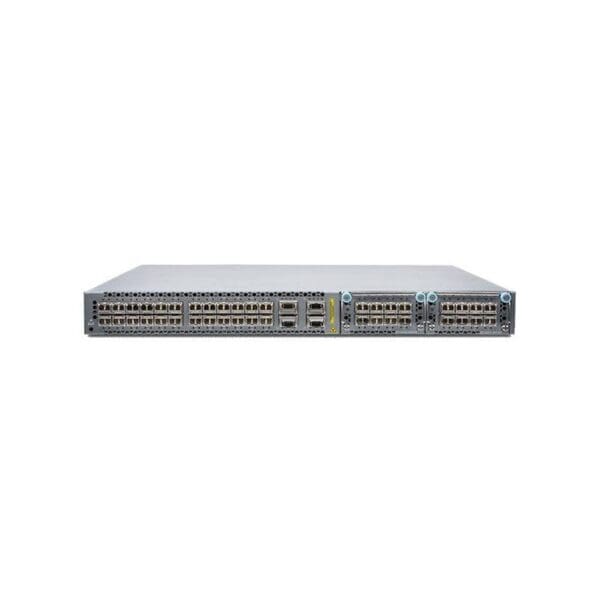

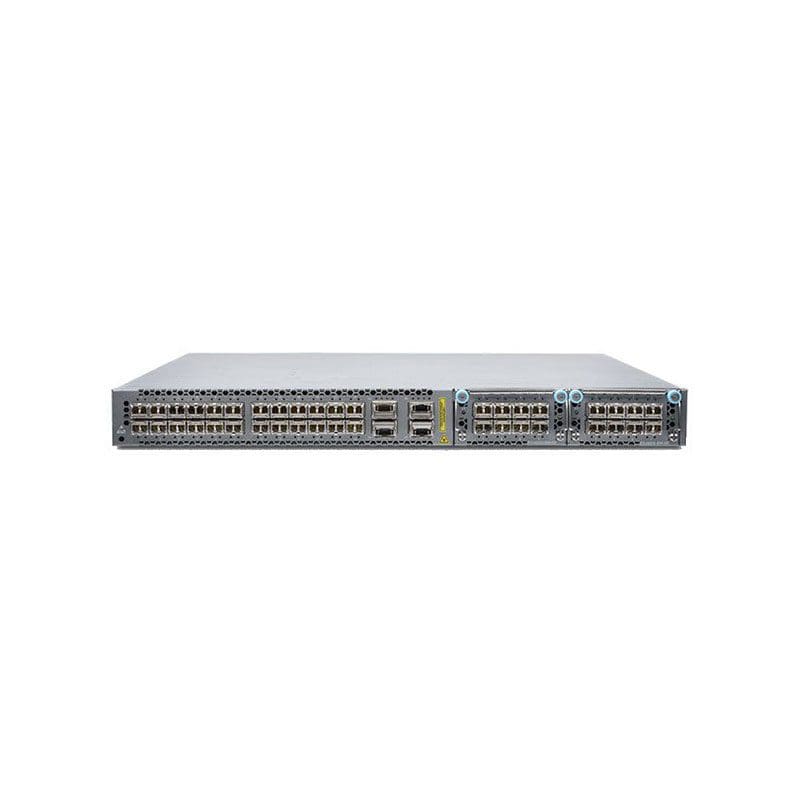

Refurbished EX4600-40F-DC-AFI Juniper Networks EX Series

Brand:

Refurbished EX4600-40F-DC-AFI Overview

The EX4600 line of Ethernet switches delivers data center class scale, high availability, and high performance to campus distribution deployments. The EX4600 gives the flexibility to also be implemented in data center top-of-rack and service provider aggregation deployments.

$7,800.00

Shipping calculated at checkout.
or
SKU: EX4600-40F-DC-AFI-RF Categories: Brand:

Refurbished EX4600-40F-DC-AFI Technical Specifications

Juniper Networks EX Series EX4600 switch 24 ports managed rack mountable

Manufacturer Netscreen
Brand Juniper, Juniper Networks
Product Line Juniper Networks EX Series
Model EX4600
Packaged Quantity :1

Chassis

Airflow Direction Back to front airflow

Performance

Performance :Switching capacity 1.07 Bpps, Switching capacity: 1.44 Tbps

Capacity

Capacity :IPv6 routes (Unicast) 64000, LAG groups: 128, Equal-Cost Multipathing (ECMP) ways: 64, VLAN Spanning Tree Protocol instances: 253, ARP entries: 48000, Virtual interfaces (VLANs): 4091, IPv6 routes (Multicast): 52000, Firewall policies: 4000, QoS hardware queues per port: 12, Maximum member ports per LAG: 32, Multiple Spanning Tree Protocol instances: 64, IPv4 hosts: 208000, IPv4 routes (Multicast): 104000, IPv4 routes (Unicast): 128000

Networking

Type Switch
Subcategory Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor Rack-mountable
Ports Qty :24
Fibre Channel FC-BB-6
Advanced Switching Layer 3
Routing Protocol IGMPv2, PIM-SM, RIP-2, IGMP, IS-IS, VRRP, Static IPv4 routing, OSPF, MSDP, Bidirectional Forwarding Detection (BFD), MPLS, ECMP, RIP, BGP, CIDR, IGMPv3, OSPFv2, BGP-4
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable Yes
Remote Management Protocol SSH, TFTP, CLI, SNMP 1, Telnet, SNMP 3, RMON, SNMP 2
Status Indicators Status
Features Virtual Chassis technology, sFlow v5, RARP support, FCoE support, Smoothed Deficit Weighted Round Robin (SDWRR), Class of Service (CoS), Low-latency queuing (LLQ), VLAN Spanning Tree Protocol (VSTP), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, SNTP support, Redundant trunk group (RTG), DoS attack prevention, VPN support, Redundant hot swappable fans, ARP support, 12 MB shared buffer, Back to front airflow, DHCP server, Access Control List (ACL) support, Quality of Service (QoS), DHCP relay, Dynamic ARP Inspection (DAI), IPv6 support, Trunking, Priority-based flow control, Graceful Route Engine Switchover (GRES), Non-Stop Routing (NSR), Data Center Bridging Exchange (DCBX) support, DHCP snooping, High Availability, BOOTP support, Store and forward, Cut-through, Multiple Spanning Tree Protocol (MSTP) support, MAC address filtering, IGMP filtering, Non-Stop Bridging (NSB), VLAN support, Rapid Spanning Tree Protocol (RSTP) support
Compliant Standards IEEE 802.1Qau, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1w, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1Qbg, IEEE 802.1Qaz

Ports

Qty :24
Type :1 Gigabit SFP/ 10 Gigabit SFP+
Ports (2nd)
Qty :4
Type :40 Gigabit QSFP+ (breakout compatible)

Expansion Slots

Expansion Slots :2 (total) / 2 (free) x expansion slot

Interface Provided

Interfaces :4 x 40Gbit LAN QSFP+ (breakout compatible), 1 x SFP management, 1 x USB management, 24 x 10GBase-X SFP+, 1 x RJ-45 management, 1 x console management

Power Device

Type Internal power supply
Hot-Plug Hot-plug
Power Redundancy Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Nominal Voltage DC -36 -72 V
Power Consumption Operational :320 watt
80 PLUS Certification :80 PLUS Silver

Miscellaneous

Color Category Gray
Height (Rack Units) :1
Encryption Algorithm MD5
Authentication Method RADIUS, Secure Shell (SSH), TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards BSMI CNS 13438, NCC, GR-63-CORE, RoHS 6/6, AS/NZS CISPR22:2009, CB, EN 60825-1, GR-1089-CORE, UL 60950-1 Second Edition, China RoHS, NEBS level 3, VCCI Class A, EN55022 Class A, FCC CFR47 Part 15, CAN/CSA C22.2 No. 60950-1, WEEE, REACH, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR 22:2009

Dimensions & Weight

Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :21.83 lbs

Environmental Parameters

Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
Refurbished EX4600-40F-DC-AFI ...

$7,800.00
