Refurbished EX3400-48T-AFI Technical Specifications

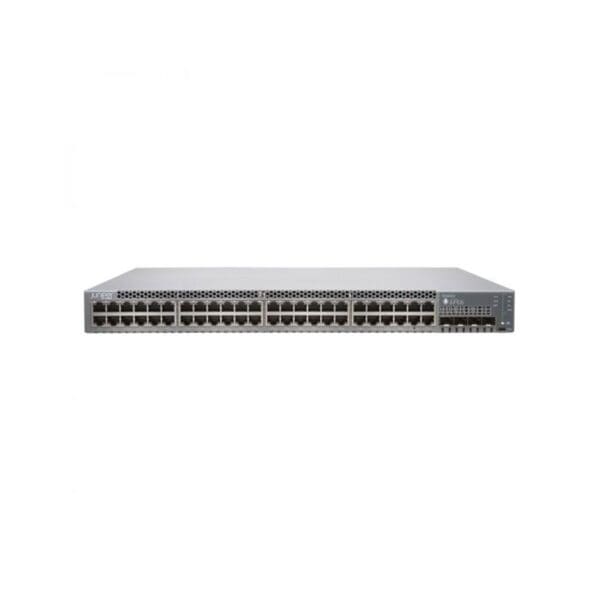

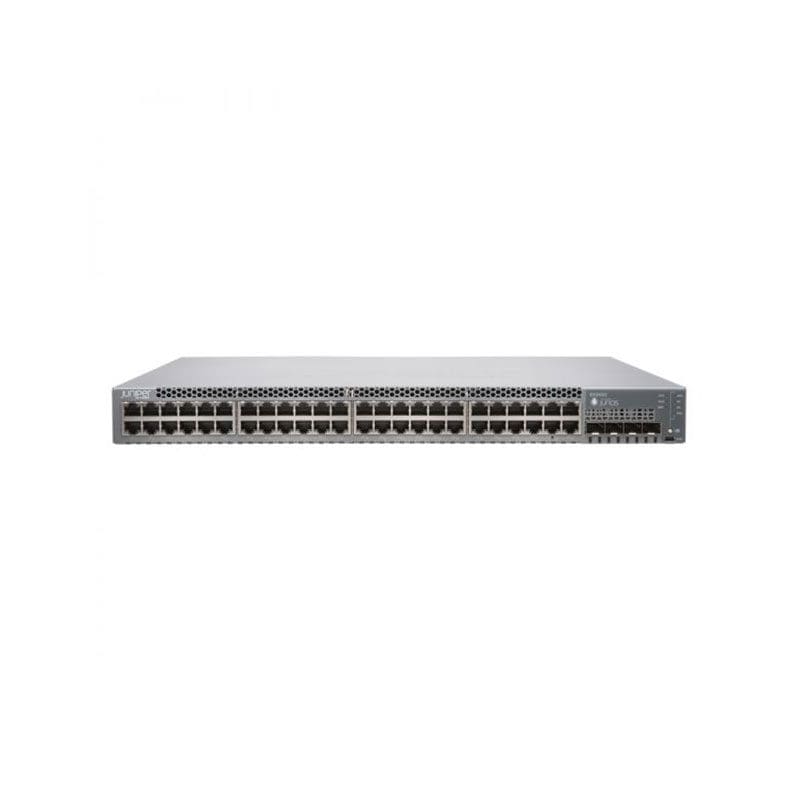

Juniper Networks EX Series EX3400-48T switch 48 ports managed rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX Series |
| Model | EX3400-48T |
| Packaged Quantity | 1 |
Chassis
| Airflow Direction | Back to front airflow |
|---|
Processor
| Installed Qty | 1 |
|---|---|
| Clock Speed | 1 GHZ |
RAM
| Installed Size | 2 GB |
|---|
Flash Memory
| Installed Size | 2 GB, 2 GB |
|---|
Performance
| Performance | Throughput: 250 Mpps, Switching capacity (64-byte packet size): 336 Gbps |
|---|
Capacity
| Capacity | ARP entries: 8000, IPv4 routes (Multicast): 4000, ACL entries: 1500, Maximum of neighboring networks: 8000, LAG groups: 128, Maximum member ports per LAG: 16, IGMP snooping entries: 1000, IPv6 hosts: 18000, QoS hardware queues per port: 12, Virtual interfaces (VLANs): 4093, IPv4 hosts: 36000, VLAN Spanning Tree Protocol instances: 510, IPv6 routes (Multicast): 2000, Multiple Spanning Tree Protocol instances: 64 |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Stackable | Stackable |
| Max Units In A Stack | 10 |
| Ports Qty | 48 |
| Advanced Switching | Layer 3 |
| Routing Protocol | MSDP, IS-IS, RIP-1, Static IPv4 routing, CIDR, RIPng, Static IPv6 routing, RIP-2 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9216 bytes |
| Manageable | Yes |
| Remote Management Protocol | SNMP 1, HTTP, SSH, TFTP, RMON 3, RMON 9, CLI, HTTPS, Telnet, SNMP 2c, RMON 1, RMON 2, SNMP 3 |
| Features | Port mirroring, DoS attack prevention, Redundant trunk group (RTG), Quality of Service (QoS), Multiple Spanning Tree Protocol (MSTP) support, DHCP proxy, Graceful Route Engine Switchover (GRES), SNTP support, Zero Touch Auto Provisioning, Internet Control Message Protocol (ICMP), DHCP client, Auto-uplink (auto MDI/MDI-X), NTP time synchronization, IP Precedence, Rapid Spanning Tree Protocol (RSTP) support, VLAN Spanning Tree Protocol (VSTP), Non-Stop Bridging (NSB), MACsec support, sFlow, DHCP server, Temperature sensor, Captive Portal, Spanning Tree Protocol (STP) support, DHCP snooping, Per-VLAN Spanning Tree Plus (PVST+), Non-Stop Routing (NSR), DiffServ support, System log, Energy Efficient Ethernet, Virtual Route Forwarding-Lite (VRF-Lite), Management Information Base (MIB), Class of Service (CoS), Multiple VLAN Registration Protocol (MVRP), Virtual Chassis technology, DHCP relay, Access Control List (ACL) support, Tagged VLAN, DiffServ Code Point (DSCP) support, Smoothed Deficit Weighted Round Robin (SDWRR), RARP support, Management Information Base (MIB) II, ICMP Router Discovery Protocol (IRDP), Dynamic ARP Inspection (DAI), Back to front airflow, Cable Diagnostics Function, Store and forward, Neighbor Discovery Protocol (NDP), BOOTP support, ARP support, VLAN support, IPv6 support, Strict Priority (SP) |
| Compliant Standards | IEEE 802.1ae, IEEE 802.1ak, IEEE 802.3ad (LACP), ANSI/TIA-1057, IEEE 802.1w, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.1x, IEEE 802.1BR, IEEE 802.3, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.3ab, IEEE 802.1ag, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ae |
Ports
| Qty | 48 |
|---|---|
| Type | 10/100/1000 |
Ports (2nd)
| Qty | 4 |
|---|---|
| Type | Gigabit SFP / 10 Gigabit SFP+ |
Ports (3rd)
| Qty | 2 |
|---|---|
| Type | 40 Gigabit QSFP+ |
Interface Provided
| Interfaces | 4 x 10Gbit LAN SFP+ uplink/stacking, 48 x 1000Base-T RJ-45, 2 x 40Gbit LAN QSFP+ uplink/stacking, 1 x 100Base-TX RJ-45 management, 1 x serial management |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 150 watt |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | 120 watt |
Miscellaneous
| Color Category | Gray |
|---|---|
| Height (Rack Units) | 1 |
| Encryption Algorithm | MD5, PEAP, TLS, TTLS |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS+, Extensible Authentication Protocol (EAP) |
| Compliant Standards | ICES-003 Class A, IEC 60950-1 Second Edition, EN 60825-1, VCCI Class A, CISPR 22 Class A, CB, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 55022 Class A, TUV GS, cUL, EN55024, FCC CFR47 Part 15 A, EN 300386, RoHS 6/6, UL 60950-1 Second Edition, EN 60950-1 Second Edition |
Dimensions & Weight
| Width | 17.2 inch |
|---|---|
| Depth | 13.8 inch |
| Height | 1.7 inch |
| Weight | 13.45 lbs |
Environmental Parameters
| Min Operating Temperature | 32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | 113 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Humidity Range Operating | 10 – 85% (non-condensing) |
| Humidity Range Storage | 0 – 95% (non-condensing) |
