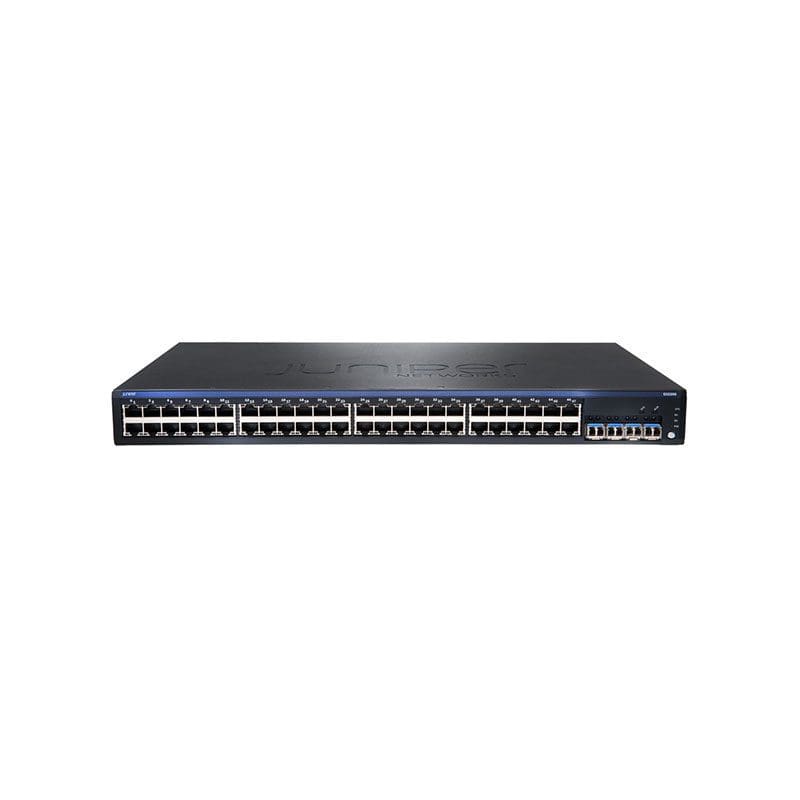

Refurbished EX2200-48P-4G Technical Specifications
Juniper Networks EX 2200 48P switch 48 ports managed
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX 2200 |
| Model | :48P |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | Status LCD |
|---|
Processor
| Clock Speed | :800 megahertz |
|---|
RAM
| Installed Size | :512 megabyte |
|---|
Flash Memory
| Installed Size | :1 GB |
|---|
Performance
| Performance :Throughput | 77 Mpps |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | Gigabit Ethernet |
| Form Factor | Desktop |
| Ports Qty | :48 |
| Advanced Switching | Layer 3 |
| Routing Protocol | RIP-2, IGMP, RIP-1 |
| MAC Address Table Size | :8K entries |
| Manageable | Yes |
| Remote Management Protocol | HTTP, SNMP 1, HTTPS, SSH-2, RMON 3, SNMP 2c, SNMP 3, RMON 9, RMON 2, Telnet, RMON 1, TFTP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | :405 watt |
| Status Indicators | LCD display |
| Features | Redundant trunk group (RTG), Jumbo Frames support, DHCP server, ARP support, Store and forward, Layer 2 switching, RARP support, Auto-uplink (auto MDI/MDI-X), Per-VLAN Spanning Tree (PVST), Rapid Spanning Tree Protocol (RSTP) support, VLAN support, IGMP snooping, SNTP support, DiffServ support, Layer 3 switching, Flow control, Quality of Service (QoS), Temperature sensor, BOOTP support, Trivial File Transfer Protocol (TFTP) support, Multiple Spanning Tree Protocol (MSTP) support, DoS attack prevention, Time Domain Reflectometry (TDR) |
| Compliant Standards | IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.1p |
Ports
| Qty | :48 |
|---|---|
| Type | :10/100/1000 (PoE+) |
| Ports | (2nd) |
| Qty | :4 |
| Type | Gigabit SFP |
Interface Provided
| Interfaces | :1 x console RJ-45 management, 4 x Gigabit LAN SFP uplink, 48 x 1000Base-T RJ-45 PoE+, 1 x 100Base-TX RJ-45 management, 1 x USB Type A |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Consumption Operational | :91 watt |
Miscellaneous
| Height (Rack Units) | :1 |
|---|---|
| Authentication Method | Extensible Authentication Protocol (EAP), TACACS+, RADIUS |
| Compliant Standards | EN55024, CSA C22.2 No. 60065, VCCI Class A ITE, cUL, EN 300 386, UL 60950-1, RoHS 6/6, UL, CISPR 22 Class A |
Dimensions & Weight
| Width | :17.4 inch |
|---|---|
| Depth | :10 inch |
| Height | :1.8 inch |
| Weight | :9.92 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :113 degree Fahrenheit |
| Humidity Range Operating | :10 – 85% |
