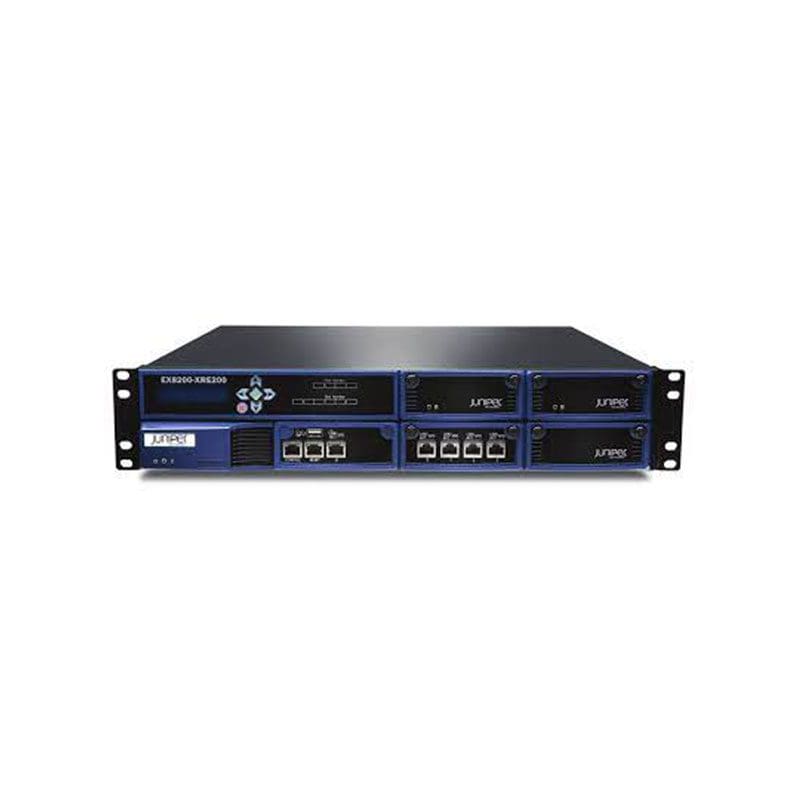

Refurbished EX-XRE200-AC Juniper Networks EX-series XRE200 router
Refurbished EX-XRE200-AC Overview
The XRE200 includes a front-panel LCD that can be used for device bring-up and configuration rollbacks, switch alarm reporting and LED status, and restoring switch default settings. A front-panel RJ-45 console port and the 10/100/1000BASE-T Ethernet port enable out-of-band management.
$650.00
Shipping calculated at checkout.
Refurbished EX-XRE200-AC Technical Specifications
Juniper Networks EX-series XRE200 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks EX-series |
| Model | XRE200 |
| Packaged Quantity | :1 |
Processor
| Type | Core 2 Duo |
|---|---|
| Installed Qty | :1 |
| Manufacturer | Intel |
| Clock Speed | :2.1 GHZ |
RAM
| Technology | SDRAM |
|---|---|
| Installed Size | :4 GB |
Flash Memory
| Installed Size | :4 GB, 4 GB |
|---|
Hard Drive
| Capacity | :360 GB |
|---|
Modem
| Type | None |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | OSPF, IS-IS, IGMPv3, IGMPv2, RIP-2, PIM-SM, IGMP, PIM-DM, RIP-1, OSPFv2, VRRP, PIM-SSM, BGP, MSDP |
| Jumbo Frame Support | :9216 bytes |
| Network / Transport Protocol | UDP/IP, ARP, TCP/IP |
| Remote Management Protocol | CLI, SSH-2, Telnet, SSH |
| Status Indicators | LCD display, Power, HDD activity, Status, Alert |
| Features | IPv6 support, Layer 3 switching, Bidirectional Forwarding Detection (BFD), Virtual Route Redundancy Protocol (VRRP) support, RADIUS support, Spanning Tree Protocol (STP) support, Layer 2 switching, Hot swappable dual fans, SSH support, Redundant trunk group (RTG), Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), ARP support, Multiple Spanning Tree Protocol (MSTP) support, IGMP snooping |
| Compliant Standards | IEEE 802.1w, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1s, IEEE 802.1D |
Expansion Slots
| Expansion Slots | Expansion slot |
|---|
Interface Provided
| Interfaces :Management | 1 x console – RJ-45, 1 x auxiliary – RJ-45, 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x RJ-45 |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Power Provided | :250 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Height (Rack Units) | :2 |
|---|---|
| Authentication Method | TACACS+, RADIUS |
| Compliant Standards | FCC CFR47 Part 15, VCCI Class A ITE, RoHS, EN300-386, ICES-003 Class A, EN55022 Class A, CSA C22.2 No. 60950-1, UL 60950-1, EN55024, IEC 60950-1, EN 60825-1, EN 60950-1, CISPR 22 Class A, EN 300 386 |
Dimensions & Weight
| Width | :17.2 inch |
|---|---|
| Depth | :17.7 inch |
| Height | :3.5 inch |
| Weight | :29.1 lbs |
Environmental Parameters
| Min Operating Temperature | :41 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :8 – 90% (non-condensing) |
