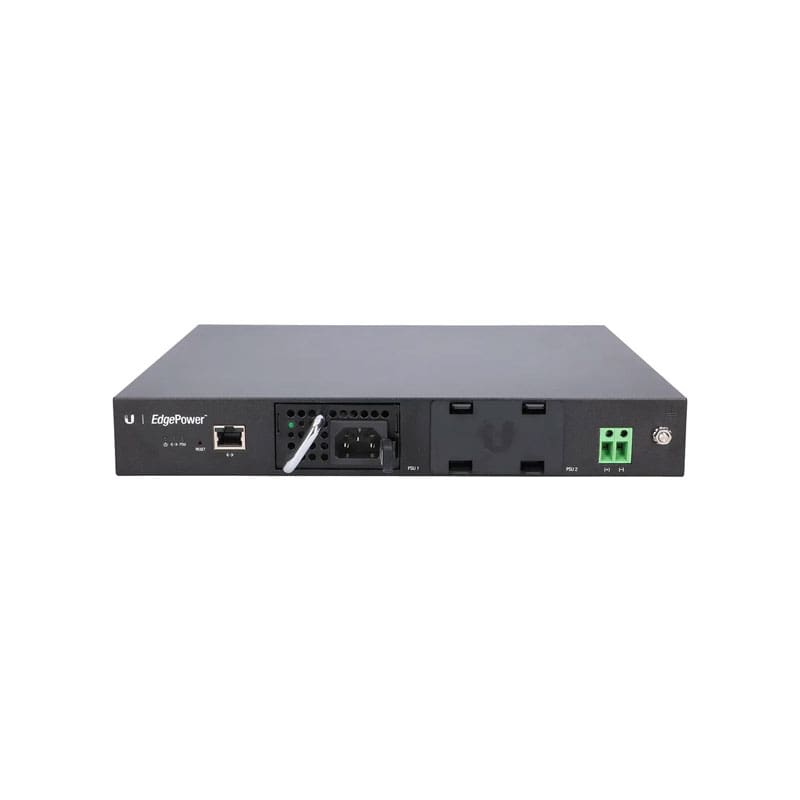

EP-54V-150W Ubiquiti Networks EdgePoint power supply 150 Watt
EP-54V-150W Overview
Ubiquiti Networks EdgePoint power supply 150 Watt. The EdgePower is a high-power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300 W of power, or be configured to provide up to 150 W of power with an automatic PSU backup
$197.00
Shipping calculated at checkout.
EP-54V-150W Technical Specifications
Ubiquiti Networks EdgePoint power supply 150 Watt
| Brand | Ubiquiti Networks |
|---|---|
| Product Line | Ubiquiti Networks EdgePoint |
| Model | EP-54V-150W |
| Manufacturer | Ubiquiti |
Network & Communication
| Remote Management | HTTP, HTTPS |
|---|---|
| Remote Management Interface | Ethernet 10/100 |
Connectivity
| Interface Provided | 1 x management (Fast Ethernet) – RJ-45 |
|---|
Power
| Emergency Power Off | LED indicators |
|---|---|
| Frequency | 50 – 60 hertz |
| Output Connector Type | 2 pin terminal block |
| Power Output Connectors Details | 1 x 2 pin terminal block |
| Power Provided | 150 watt |
| Power Supply Compatibility | Network hardware |
| Provided Voltage | 54 volt |
Technical Information
| Form Factor (Power Device) | Rack-mountable / external |
|---|---|
| Max Operating Temperature | 104 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
Dimensions & Weight
| Height | 1.7 inch |
|---|---|
| Height (Rack Units) | 1 |
| Rack Size | 19 |
| Rack Size (metric) | 48.3 cm |
| Weight | 5.95 lbs |
| Width | 11.8 inch |
| Depth | 11.3 inch |
