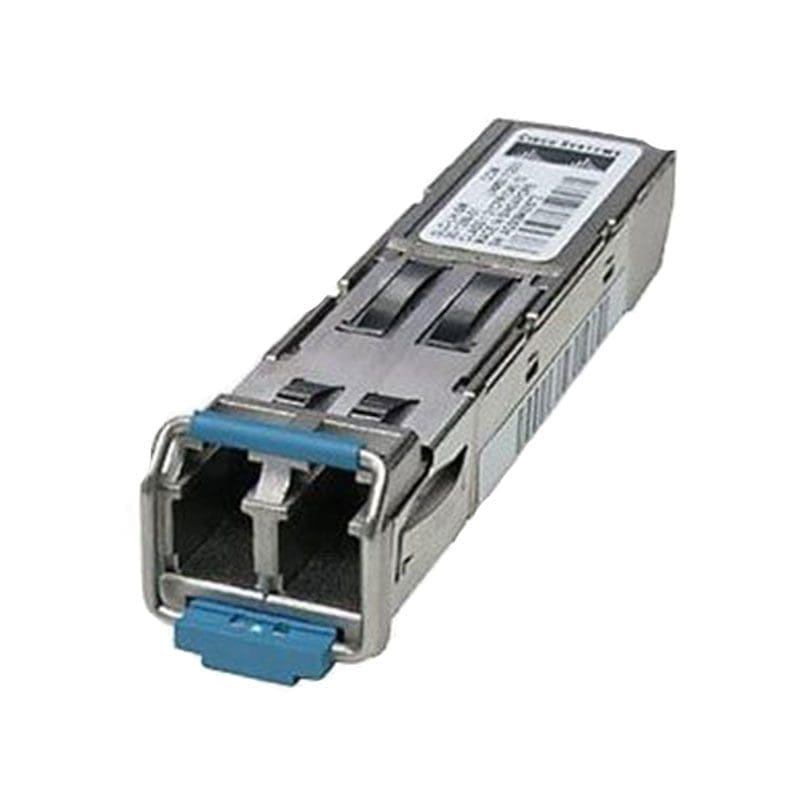

DWDM-SFP10G-33.47 Technical Specifications
Cisco SFP Transceiver Module 10 GigE
Connectors
| Left Connector Type | LC/PC |
|---|
Environmental Parameters
| Max Operating Temperature | :158 °F |
|---|---|
| Min Operating Temperature | :32 °F |
| Brand | Cisco |
|---|---|
| Compatibility | PC |
| Manufacturer | CISCO DS HARDWARE DIRECT |
| Packaged Quantity | :1 |
| Product Line | Cisco Transceiver |
Interface Provided
| Connector Qty | X 2 |
|---|---|
| Connector Type | LC/PC |
| Qty | :1 |
| Type | DWDM |
Miscellaneous
| Compliant Standards | :21 CFR 1040.10, GR-1435-CORE, GR-20-CORE, GR-326-CORE, IEC 60825, ITU-T G.709, ITU-T G.975, ITU-T G.975.1, Laser Class 1, MSA |
|---|
Networking
| Cabling Type | DWDM |
|---|---|
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet |
| Data Transfer Rate | :10GBase |
DWDM Channel :55
| Form Factor | Plug-in module |
|---|---|
| Optical Wave Length | :1533.47 nm |
| Type | SFP+ transceiver module |
Power Device
| Power Consumption Operational | :1.5 Watt |
|---|
