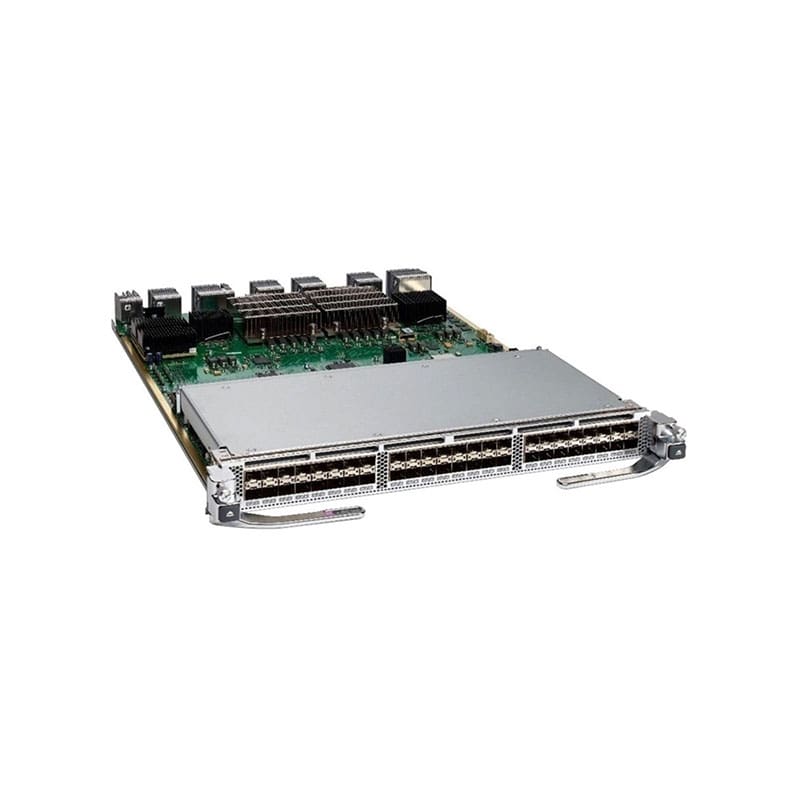

DS-X9648-1536K9 Cisco MDS 9700 Module Switch 48 ports

Brand:

DS-X9648-1536K9 Overview

The Cisco MDS 9700 24-port Fiber Channel over Ethernet (FCoE) module provides Cisco Unified Fabric connectivity to the SAN core. It empowers midsize and large enterprises, that are rapidly deploying cloud-scale applications with Inter-Switch Link (ISL) consolidation and exceptional investment protection for their SANs. The data center fabric is already using 40-Gbps connectivity in the core for more efficient convergence, higher performance, and lower total cost of ownership (TCO). This capability can now be extended to the SAN core.

$9,129.00

Shipping calculated at checkout.
or
SKU: DS-X9648-1536K9 Categories: Brand:

DS-X9648-1536K9 Technical Specifications

Cisco MDS 9700 Module Switch 48 ports Managed Plug-in Module

Brand Cisco
Product Line Cisco MDS
Model 9700 Module
Manufacturer CISCO DS HARDWARE DIRECT

Network & Communication

Form Factor (Hubs & Switches) Plug-in module
Manageable Yes
Ports 48
Product Type Switch
Remote Management CLI, SFTP, SNMP 3, SSH-2
Status Indicators Status
Subcategory Fibre Channel and SAN
Switching Type Fibre Channel

Connectivity

Interface Provided 1 x serial (RS-232), 48 x
Port Quantity 48
Port Type 32Gb Fibre Channel

Technical Information

Encryption 128-bit AES
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 104 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
DS-X9648-1536K9 Cisco MDS 9700...

$9,129.00
