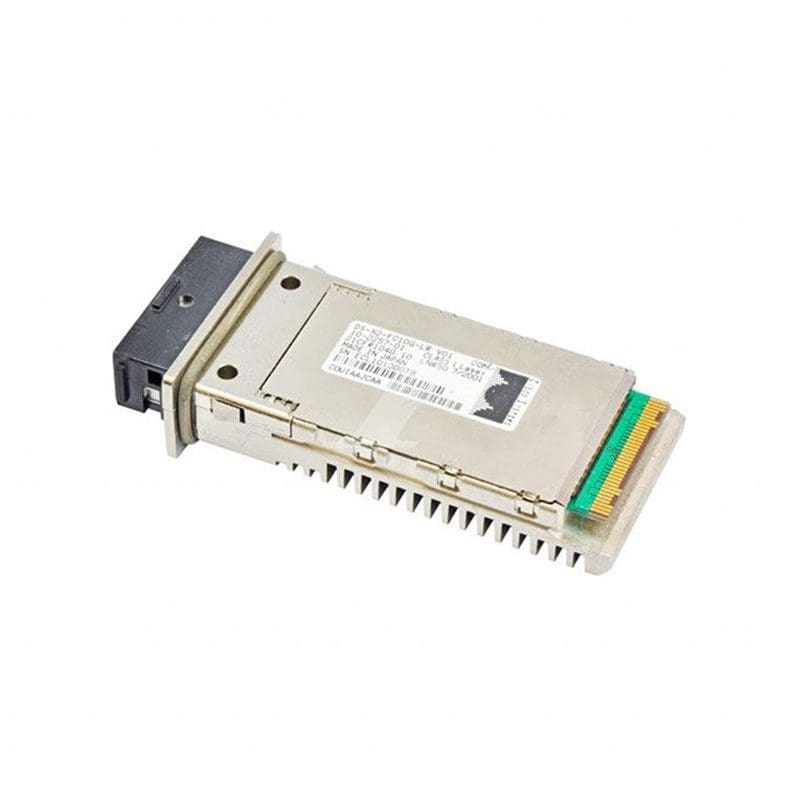

DS-X2-FC10G-LR Technical Specifications
Cisco 10Gbps Fibre Channel LR X2 Transceiver.
General Information
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Brand Name | Cisco |
| Description | Cisco 10-Gbps Fibre Channel-Long-reach, X2, SC |
| Device Type | Plug-in module |
| Form Factor | Cisco X2 |
Cisco Transceiver
| Date Rate | 10.3125Gbps |
|---|---|
| Wavelength | 1310nm |
| Power Budget | 10dB |
| Max Reach Distance | 10km |
| Transmit Power | -6~-1dBm |
| Receive Sensitivity | -15dBm |
| Voltage | +5.0 V/ +3.3 V |
| Power Consumption | <4W |
| Connector | Dual SC/PC |
| Fiber Type | SMF |
| Operation Temperature | 0~70 °C |
| Ddmi | With |
| Application | Fiber Channel |
