DS-C9718 Technical Specifications

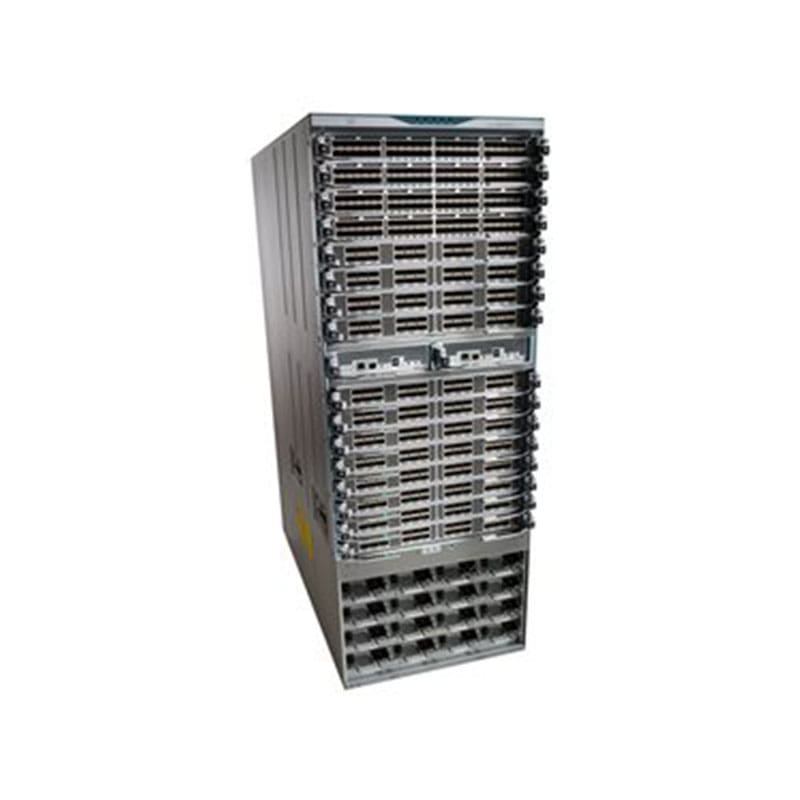

Cisco MDS 9718 Chassis Switch Rack-Mountable
| Device Type | Switch |
|---|---|
| MNP | DS-C9718 |
| Enclosure Type | Rack-mountable 26U |
| Subtype | Fibre Channel |
| Features | 3 fan trays |
| Status Indicators | Power, fan, supervisor, fabric, line-card |
Expansion / Connectivity
| Installed Modules Qty (Max) | 0 (installed) / 18 (max) |
|---|
Power
| Power Device | Internal power supply (not installed) – hot-plug |
|---|---|
| Max Supported Qty | 16 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 2N |
Miscellaneous
| Included Accessories | Accessory kit |
|---|
Software / System Requirements
| OS Required | Cisco NX-OS 7.3 or later |
|---|
Dimensions & Weight
| Width | 45.2 in |
|---|---|
| Depth | 17.3 in |
| Height | 35 in |
| Weight | 299.83 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
|---|---|
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 – 95% (non-condensing) |
