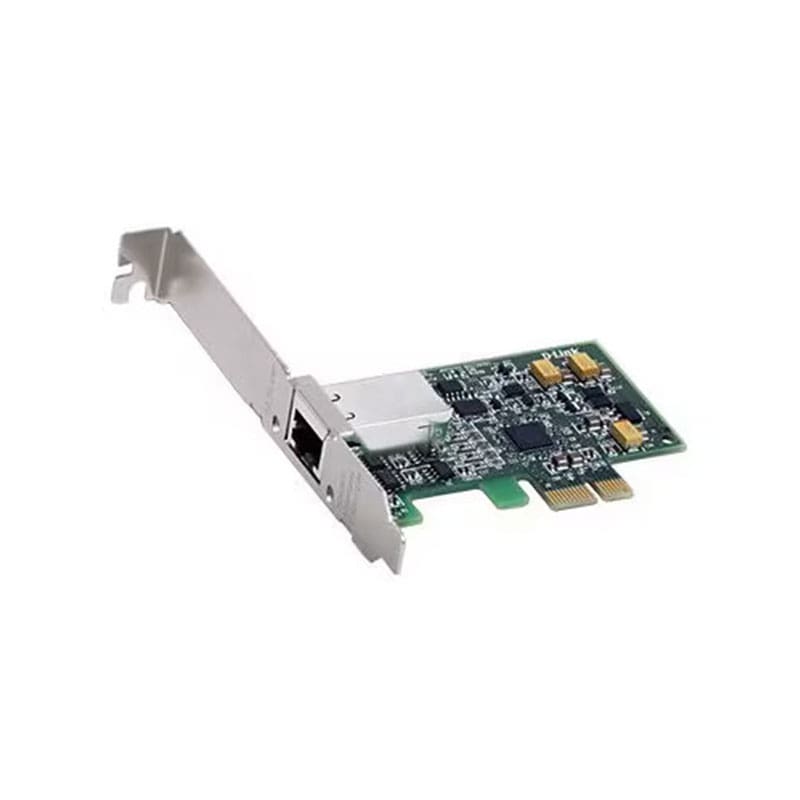

DGE-560T D-Link GigaExpress Network Adapter PCIe 10/100 Ethernet
DGE-560T Overview
The DGE-560T PCI Express Gigabit Network Adapter from D-Link is a high performance adapter designed for the high-speed PCI Express Bus Architecture. The PCI Express Network Adapter from D-Link offers increased bandwidth, reliability, and more functionality than standard PCI network cards. It is specifically designed to allow throughput at rates up to 2Gbps, thus eliminating the bottleneck that exists with current 32 and 64 bit PCI bus architectures. With support for advanced features such as: 802.3x flow control, SNMP for network monitoring and management, and Jumbo Frames, interoperability with your current networking equipment, and network feature sets will not be an issue.
$26.00
Shipping calculated at checkout.
DGE-560T Technical Specifications
D-Link GigaExpress Network Adapter PCIe 10/100 Ethernet
| Brand | D-Link |
|---|---|
| Product Line | D-Link GigaExpress |
| Model | DGE-560T |
| Manufacturer | -Link |
Network & Communication
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 GBps |
| Form Factor | Plug-in card |
| Host Interface | PCI Express x1 |
| Network Standard | TCP/IP, UDP/IP |
| Product Type | Network adapter |
| Remote Management | SNMP 1 |
Expansion Slots
| Compatible Slots Required | 1 x PCI Express x1 |
|---|
Connectivity
| Interface Provided | 1 x 100Base-TX – RJ-45 |
|---|---|
| Network & Adapter Ports | 10/100 |
Technical Information
| Max Operating Temperature | 122 degree Fahrenheit |
|---|---|
| Min Operating Temperature | 32 degree Fahrenheit |
| Operating Humidity | 30 – 80% |
Product Information
| Packaged Quantity | 1 |
|---|
Dimensions & Weight
| Height | 2.2 inch |
|---|---|
| Depth | 3.4 inch |
Certifications & Listings
| Compliant Standards | C-Tick, FCC Class B certified |
|---|
