CPB09-031A Technical Specifications

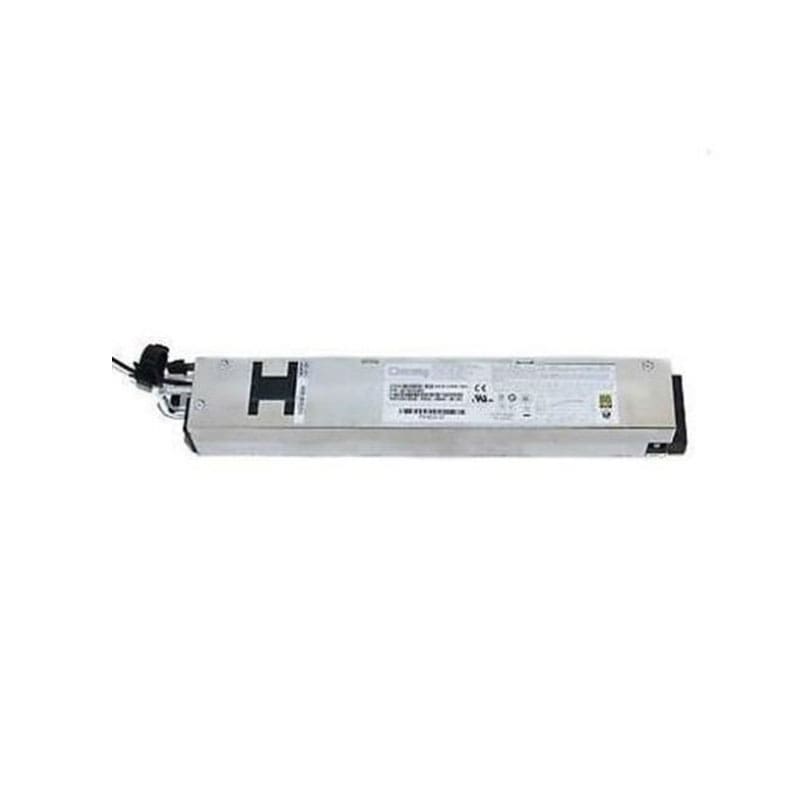

Cisco 650 Watt Power Supply for UCS C200 OR C210
| Manufacturer | Cisco |
|---|---|
| Brand Name | Cisco |
| Product Name | Power Supply |
| Product Type | Redundant Power Supply |
| Input Voltage | 100 – 240 VAC |
| Input Frequency | 47 – 63 Hz |
| Input Current | 8.5 A |
| Output Power | 650 W |
| Output Voltage | 12 VDC |
| Output Current | 54.2 A |
| Efficiency | 88% |
| Hold-up Time | 16 ms |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Operating Humidity | 5 to 95% |
| Dimensions (H x W x D) | 1.6 x 5.9 x 10.2 inches (4 x 15 x 26 cm) |
| Weight | 7.9 lbs (3.6 kg) |
| Compliance | UL/CUL/TUV/CB/CE/FCC Class A |
